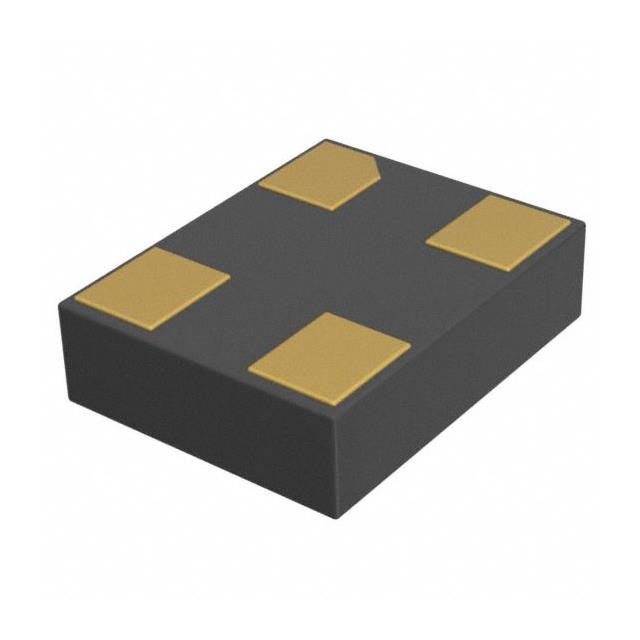

DSC1003CI2-033.0000T
ActiveMicrochip Technology
MEMS OSC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DSC1003CI2-033.0000T
ActiveMicrochip Technology
MEMS OSC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DSC1003CI2-033.0000T |
|---|---|
| Base Resonator | MEMS |
| Current - Supply (Disable) (Max) [Max] | 15 µA |
| Current - Supply (Max) [Max] | 10.5 mA |
| Frequency | 33 MHz |
| Frequency Stability | 25 ppm |
| Function | Standby (Power Down) |
| Height - Seated (Max) [Max] [z] | 0.035 " |
| Height - Seated (Max) [Max] [z] | 0.9 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | CMOS |
| Package / Case | 4-VDFN |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | XO (Standard) |
| Voltage - Supply [Max] | 3.3 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 2.21 | |
| 10 | $ 1.91 | |||
| 50 | $ 1.72 | |||
Description
General part information
DSC1003CI2-033.0000T
33 MHz XO (Standard) CMOS Oscillator 1.8V ~ 3.3V Standby (Power Down) 4-VDFN
