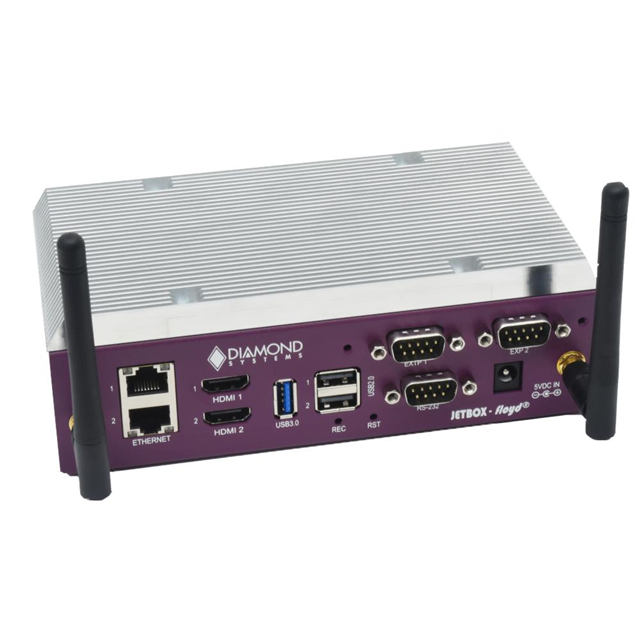

JB-FLOYD-XNX-02
ActiveDiamond Systems
XAVIER NX SYSTEM ECONOMY
Deep-Dive with AI
Search across all available documentation for this part.
JB-FLOYD-XNX-02
ActiveDiamond Systems
XAVIER NX SYSTEM ECONOMY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JB-FLOYD-XNX-02 |
|---|---|
| Ethernet | GbE (1) |
| Expansion Site/Bus | PCIe, M.2 |
| Form Factor | Mini PCIe |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| RS-232 (422, 485) | 2 |
| Size / Dimension [x] | 175.26 mm |
| Size / Dimension [x] | 6.9 in |
| Size / Dimension [y] | 91.44 mm |
| Size / Dimension [y] | 3.6 " |
| USB | USB 2.0 (2), USB 3.0 (1) |
| Video Outputs | HDMI |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1293.00 | |
| 5 | $ 1228.00 | |||
Description
General part information
JB-FLOYD-XNX-02
Single Board Computer Core RAM
Documents
Technical documentation and resources
No documents available
