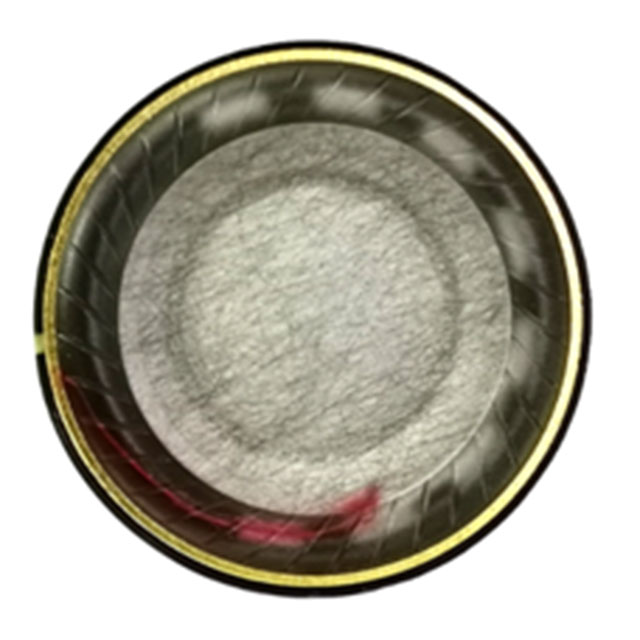

NS40P-320004-72-03
ActiveHuizhou N Acoustics Co., Ltd
SPEAKER 32OHM 40MW 78DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NS40P-320004-72-03
ActiveHuizhou N Acoustics Co., Ltd
SPEAKER 32OHM 40MW 78DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NS40P-320004-72-03 |
|---|---|
| Efficiency - dBA | 78 dBA |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 20 Hz |
| Height - Seated (Max) [Max] [z] | 0.283 in |
| Height - Seated (Max) [Max] [z] | 7.2 mm |
| Impedance | 32 Ohms |
| Material - Cone [custom] | Bio-Cellulose Diaphragm |
| Material - Magnet | Nd-Fe-B |
| Power - Max [Max] | 100 mW |
| Power - Rated | 0.04 W |
| Shape | Round |
| Size / Dimension [diameter] | 1.575 " |
| Size / Dimension [diameter] | 40 mm |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 10.08 | |
| 10 | $ 9.74 | |||
| 25 | $ 9.41 | |||
| 50 | $ 8.40 | |||
| 100 | $ 6.72 | |||
Description
General part information
NS40P-320004-72-03
32 Ohms General Purpose Speaker 40 mW 20 Hz ~ 20 kHz Round
Documents
Technical documentation and resources
