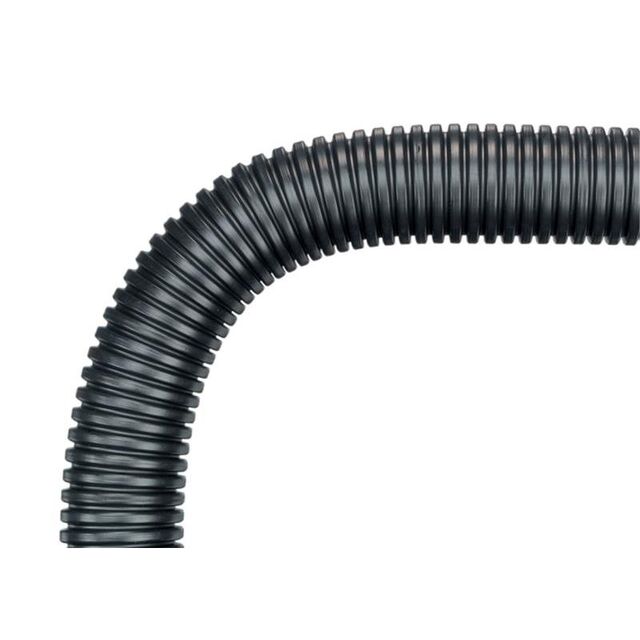

83201216
ActiveMurrplastik Systems, Inc.
CORRUGATED CONDUIT, FLEXIBLE, ID
Deep-Dive with AI
Search across all available documentation for this part.
83201216
ActiveMurrplastik Systems, Inc.
CORRUGATED CONDUIT, FLEXIBLE, ID
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 83201216 |
|---|---|
| Color | Black |
| Diameter - Inside [diameter] | 15.6 mm |
| Diameter - Inside [diameter] | 0.614 in |
| Diameter - Outside [diameter] | 0.827 in |
| Diameter - Outside [diameter] | 21 mm |
| Environment Protection | UV Resistant |
| Length [x] | 100 m |
| Length [x] | 328 ' |
| Material | Polypropylene (PP), Halogen Free |
| Material Flammability Rating | UL94 HB |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -40 °C |
| Type | Protective Hose, Wire Loom |
| Type Attributes | Convoluted, Corrugated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 143.65 | |
Description
General part information
83201216
Black Polypropylene (PP), Halogen Free Convoluted, Corrugated Wire Loom, Protective Hose 0.614" (15.60mm) 328' (100.00m)
Documents
Technical documentation and resources
No documents available
