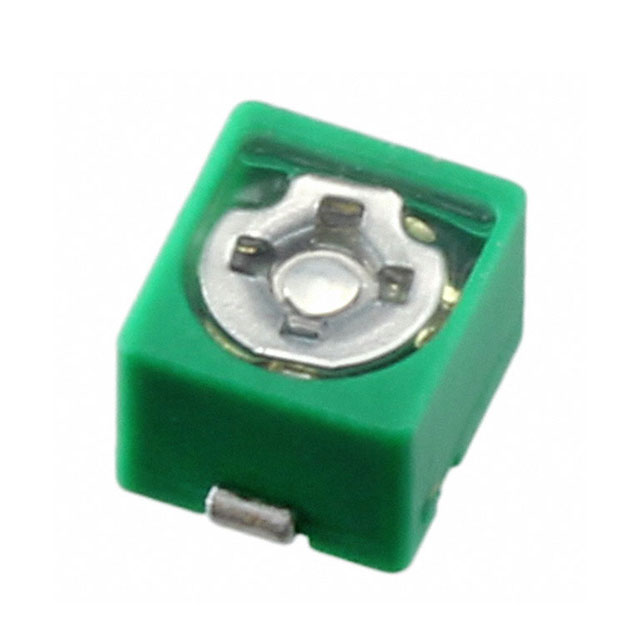

GKG30086
ActiveEW Electronics
CAP TRIMMER 6.5-30PF 100V SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GKG30086
ActiveEW Electronics
CAP TRIMMER 6.5-30PF 100V SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GKG30086 |
|---|---|
| Adjustment Type | Top |
| Capacitance Range [Max] | 30 pF |
| Capacitance Range [Min] | 6.5 pF |
| Dielectric Material | Ceramic |
| Features | General Purpose |
| Height - Seated (Max) | 3 mm |
| Height - Seated (Max) [Max] | 0.118 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Q @ Freq | 1 MHz, 300 |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [y] | 4 mm |
| Size / Dimension [y] | 0.157 in |
| Voltage - Rated | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.53 | |
| 10 | $ 1.33 | |||
| 25 | $ 1.28 | |||
| 50 | $ 1.25 | |||
| 100 | $ 1.19 | |||
| 250 | $ 1.08 | |||
| 500 | $ 1.00 | |||
Description
General part information
GKG30086
6.5 ~ 30pF Trimmer Capacitor 100 V Top Surface Mount
