CWSN63WRMAP3 .062
ActiveAmerway Inc
SN63PB37 WRMAP3 .062 DIA 1# SPL
Deep-Dive with AI
Search across all available documentation for this part.
CWSN63WRMAP3 .062
ActiveAmerway Inc
SN63PB37 WRMAP3 .062 DIA 1# SPL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CWSN63WRMAP3 .062 |
|---|---|
| Diameter [diameter] | 0.062 in |
| Diameter [diameter] | 1.57 mm |
| Flux Type | Rosin Mildly Activated (RMA) |
| Form | Spool, 1 lb (454 g) |
| Melting Point [custom] | 361 °F |
| Melting Point [custom] | 183 °C |
| Process | Leaded |
| Shelf Life | 60 Months |
| Shelf Life Start | Date of Manufacture |
| Storage/Refrigeration Temperature | Room Temperature |
| Type | Wire Solder |
| Weight | 453.59 g |
| Weight | 1 lbs |
| Wire Gauge | 13.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 53.41 | |
| 5 | $ 48.81 | |||
| 10 | $ 41.92 | |||
| 25 | $ 37.33 | |||
Description
General part information
CWSN63WRMAP3 .062

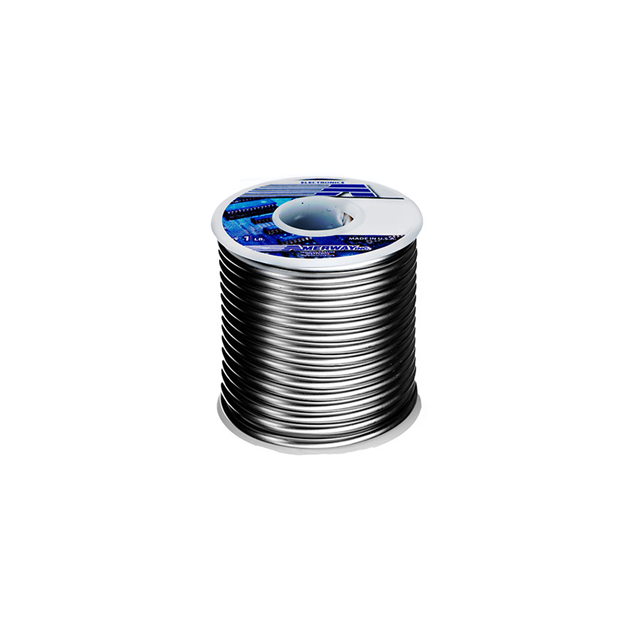

Leaded Rosin Mildly Activated (RMA) Wire Solder Sn63Pb37 (63/37) 14 AWG Spool, 1 lb (454 g)
Documents
Technical documentation and resources
No documents available
