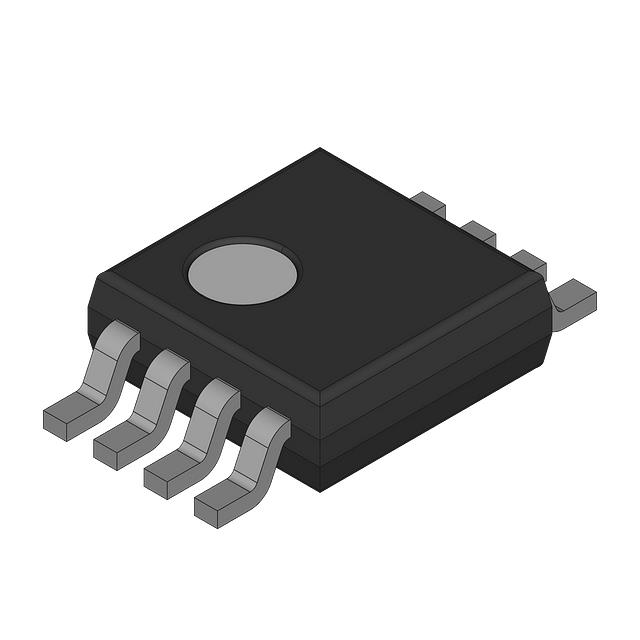

HMC194AMS8ETR
ActiveHittite
DIVERSITY SWITCH, 0MHZ MIN, 3000
Deep-Dive with AI
Search across all available documentation for this part.
HMC194AMS8ETR
ActiveHittite
DIVERSITY SWITCH, 0MHZ MIN, 3000
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HMC194AMS8ETR |
|---|---|
| Circuit | SPDT |
| Frequency Range [Max] | 3 GHz |
| Frequency Range [Min] | 0 Hz |
| IIP3 | 53 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 0.5 dB |
| Isolation | 38 dB |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| P1dB | 29 dBm |
| Package / Case | 8-MSOP, 8-TSSOP |
| Package / Case | 3 mm |
| Package / Case [custom] | 0.118 in |
| RF Type | General Purpose |
| Supplier Device Package | 8-MSOP |
| Test Frequency | 2.5 GHz |
| Voltage - Supply [Max] | 7 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 92 | $ 3.28 | |
| Cut Tape (CT) | 1 | $ 7.28 | ||
| 10 | $ 4.96 | |||
| 25 | $ 4.36 | |||
| 100 | $ 3.69 | |||
| 250 | $ 3.36 | |||
| Digi-Reel® | 1 | $ 7.28 | ||
| 10 | $ 4.96 | |||
| 25 | $ 4.36 | |||
| 100 | $ 3.69 | |||
| 250 | $ 3.36 | |||
| Tape & Reel (TR) | 500 | $ 3.17 | ||
| 1000 | $ 3.00 | |||
| 1500 | $ 2.92 | |||
| 2500 | $ 2.84 | |||
Description
General part information
HMC194AMS8ETR
RF Switch IC General Purpose SPDT 3 GHz 50Ohm 8-MSOP
Documents
Technical documentation and resources
No documents available
