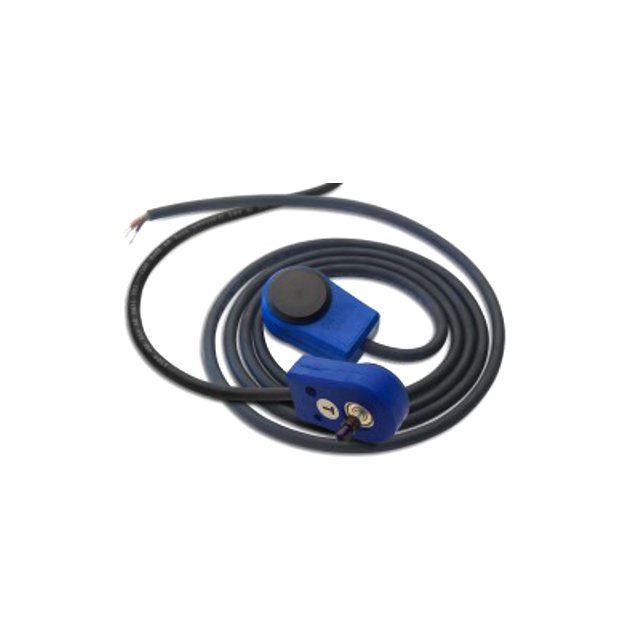

PU-MAE
ActiveDart Controls
HALL-EFFECT ENCODER - INDOOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PU-MAE |
|---|---|
| Actuator Type | Hole for Shaft |
| Built in Switch | False |
| Detent | False |
| Encoder Type | Magnetic |
| Mounting Type | Chassis Mount, Motors |
| Orientation | Right Angle |
| Output Type | Open Collector |
| Termination Style | Wire Leads |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 201.00 | |
| 2 | $ 190.95 | |||
Description
General part information
PU-MAE
HALL-EFFECT ENCODER - INDOOR
