CWSnCu0.7Ni RMA3% .062 1#
ActiveAmerway Inc
CW SNCU0.7NI WRMAP 3% 0.062 1# S
Deep-Dive with AI
Search across all available documentation for this part.
CWSnCu0.7Ni RMA3% .062 1#
ActiveAmerway Inc
CW SNCU0.7NI WRMAP 3% 0.062 1# S
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CWSnCu0.7Ni RMA3% .062 1# |
|---|---|
| Composition | 99.244, 0.05, 0.7, 0.006 |
| Diameter [diameter] | 0.062 in |
| Diameter [diameter] | 1.57 mm |
| Flux Type | Rosin Mildly Activated (RMA) |
| Form | Spool, 1 lb (454 g) |
| Melting Point [custom] | 441 °F |
| Melting Point [custom] | 227 °C |
| Shelf Life | 60 Months |
| Shelf Life Start | Date of Manufacture |
| Storage/Refrigeration Temperature | Room Temperature |
| Type | Wire Solder |
| Weight | 453.59 g |
| Weight | 1 lbs |
| Wire Gauge | 13.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 89.99 | |
| 5 | $ 84.84 | |||
| 10 | $ 80.58 | |||
| 25 | $ 76.39 | |||
Description
General part information
CWSnCu0.7Ni RMA3% .062 1#

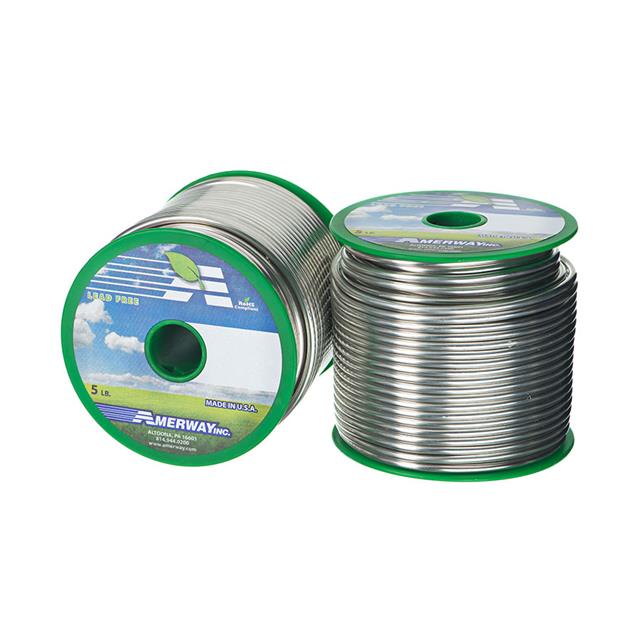

Lead Free Rosin Mildly Activated (RMA) Wire Solder Sn99.244Cu0.7 (Ni0.05/Ge0.006) 14 AWG Spool, 1 lb (454 g)
Documents
Technical documentation and resources
No documents available
