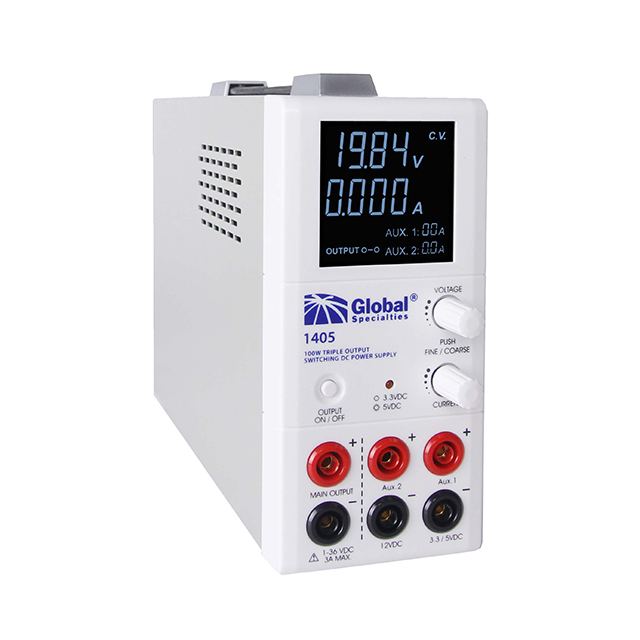

1405
ActiveGLOBAL SPECIALTIES
DC PWR SPLY 100W TRIP OUT 36V/3A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1405
ActiveGLOBAL SPECIALTIES
DC PWR SPLY 100W TRIP OUT 36V/3A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1405 |
|---|---|
| Accuracy - Voltmeter; Ammeter | 0.5% + 6 counts, 0.2% + 5 counts |
| Current Regulation - Line | 20 mA |
| Current Regulation - Load | 50 mA |
| Display Type | LCD |
| Features | Selectable Output |
| Number of Characters | 4 |
| Number of Outputs | 3 |
| Power (Watts) | 100 W |
| Ripple | 150 mV |
| Size / Dimension [x] | 248.92 mm |
| Size / Dimension [x] | 9.8 " |
| Size / Dimension [y] | 71.12 mm |
| Size / Dimension [y] | 2.8 in |
| Size / Dimension [z] | 6 in |
| Size / Dimension [z] | 152.4 mm |
| Type | Bench (AC to DC) |
| Voltage - Output [Max] | 36 V |
| Voltage - Output [Min] | 1 V |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 100 VAC |
| Voltage Regulation - Line | 25 mV |
| Voltage Regulation - Load | 70 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 390.00 | |
| 5 | $ 312.00 | |||
| Bulk | 1 | $ 39.95 | ||
Description
General part information
1405
1 ~ 36VDC Output Bench (AC to DC) Power Supply LCD 0.25 ~ 3A Output 100W Features Selectable Output
