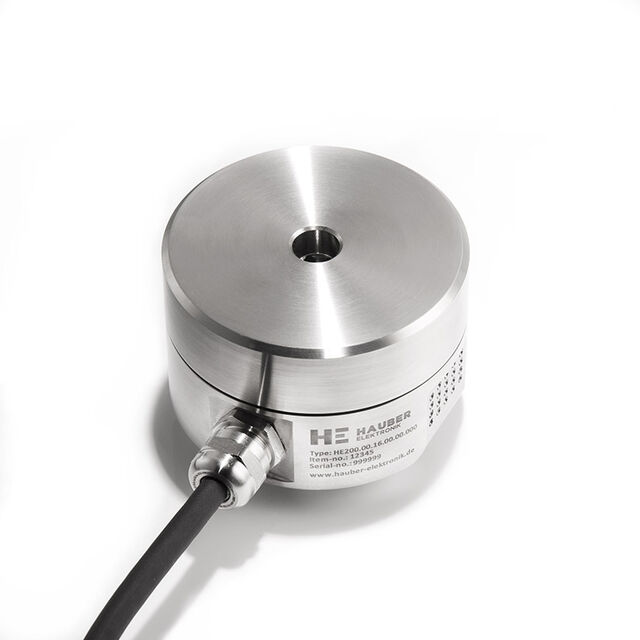

HE200.01.16.00.00.00.020
ActiveHAUBER Elektronik
VIBRATION CONTROL EX
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HE200.01.16.00.00.00.020
ActiveHAUBER Elektronik
VIBRATION CONTROL EX
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HE200.01.16.00.00.00.020 |
|---|---|
| Features | Dry Contacts, SIL2, Explosion Proof |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Digital, Analog |
| Package / Case | Cylinder, Threaded - M8 |
| Power - Rated | 100 mA |
| Power - Rated [Max] | 25.6 V |
| Power - Rated [Min] | 21.6 V |
| Sensing Range [Max] | 1 kHz |
| Sensing Range [Min] | 10 Hz |
| Sensor Type | Vibration |
| Termination | Cable/Wire Leads |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 1182.27 | |
Description
General part information
HE200.01.16.00.00.00.020
Vibration Sensor Analog, Digital Through Hole Cable/Wire Leads
Documents
Technical documentation and resources
