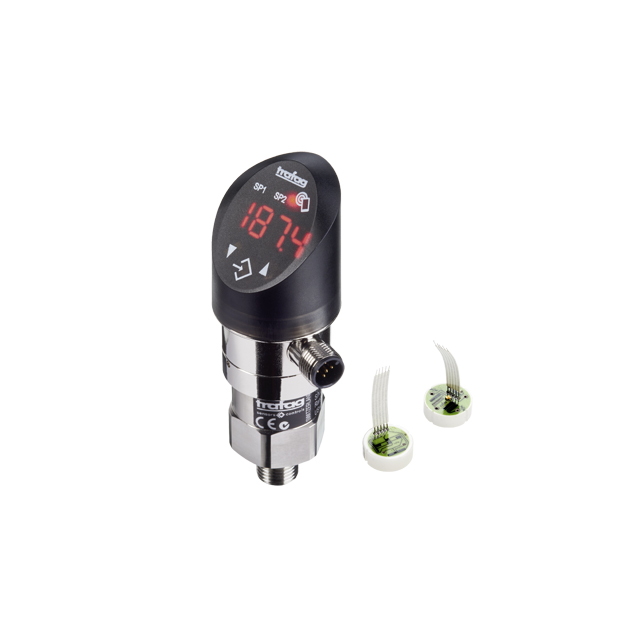

8380.G5.5730.35.PA.P1.61.44.ZS.Z1.Z2
ActiveTrafag Sensors and Controls
SENSOR 30PSIG 1/4"NPT 10V
Deep-Dive with AI
Search across all available documentation for this part.
8380.G5.5730.35.PA.P1.61.44.ZS.Z1.Z2
ActiveTrafag Sensors and Controls
SENSOR 30PSIG 1/4"NPT 10V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8380.G5.5730.35.PA.P1.61.44.ZS.Z1.Z2 |
|---|---|
| Accuracy | 0.5 % |
| Maximum Pressure [Max] | 60 PSI |
| Maximum Pressure [Max] | 413.69 kPa |
| Operating Pressure | 206.84 kPa |
| Operating Pressure | 30 PSI |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Output [Max] | 20 mA, 10 V |
| Output [Min] | 0 mV, 4 mA |
| Output Type | Analog Current/Voltage, PNP - Open Collector |
| Package / Case | Cylinder, Metal |
| Port Size [custom] | NPT |
| Port Size [custom] | Male |
| Port Size [x] | 0.25 " |
| Port Size [x] | 6.35 mm |
| Port Style | Threaded |
| Pressure Type | Gauge |
| Termination Style | M12x1, 5 Pin |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 15 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 371.01 | |
| 11 | $ 315.36 | |||
Description
General part information
8380.G5.5730.35.PA.P1.61.44.ZS.Z1.Z2
Pressure Sensor 30PSI (206.84kPa) Gauge Male - 1/4" (6.35mm) NPT 4mA ~ 20mA, 0V ~ 10V Cylinder, Metal
Documents
Technical documentation and resources
No documents available
