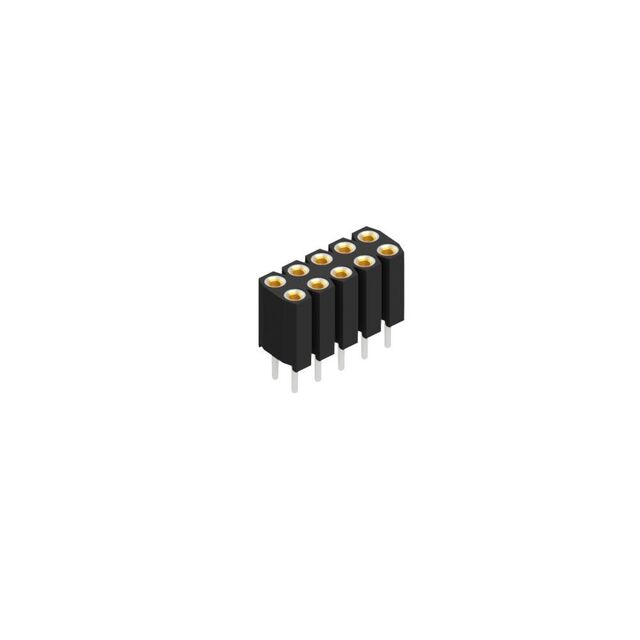

BL 6 025 10
ActiveFischer Elektronik GmbH & Co. KG
FOR 0.635 MM AND UP TO 0.85 MM
Deep-Dive with AI
Search across all available documentation for this part.
BL 6 025 10
ActiveFischer Elektronik GmbH & Co. KG
FOR 0.635 MM AND UP TO 0.85 MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BL 6 025 10 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Material | Beryllium Copper |
| Contact Type | Female Socket |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions Loaded | 10 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 163 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
| Voltage Rating | 150 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 1.35 | |
Description
General part information
BL 6 025 10
10 Position Header Connector 0.100" (2.54mm) Through Hole Gold
Documents
Technical documentation and resources
No documents available
