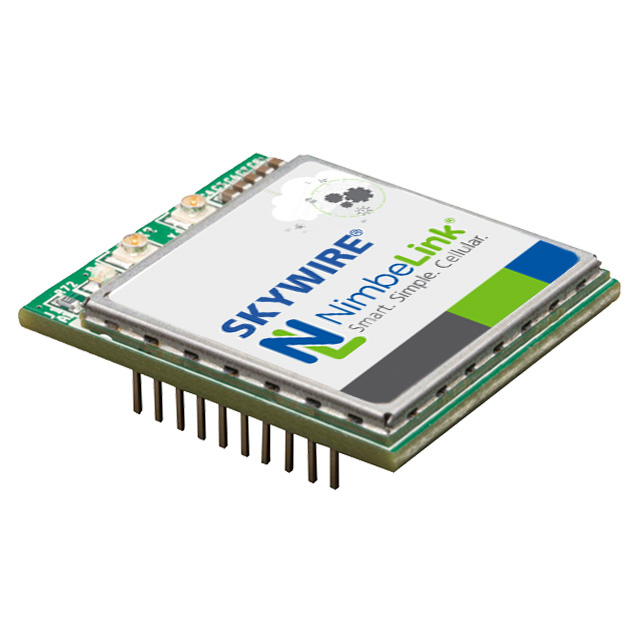

NL-SW-EVDO-V
ObsoleteNimbeLink, LLC
RF TXRX MOD CELL U.FL TH
Deep-Dive with AI
Search across all available documentation for this part.
NL-SW-EVDO-V
ObsoleteNimbeLink, LLC
RF TXRX MOD CELL U.FL TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NL-SW-EVDO-V |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Current - Transmitting | 750 mA |
| Frequency | 800 MHz, 1900 MHz |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 20-DIP Module |
| Power - Output | 24.5 dBm |
| Protocol | CDMA, EV-DO |
| RF Family/Standard | Cellular |
| Serial Interfaces | UART, USB |
| Voltage - Supply [Max] | 4.3 V |
| Voltage - Supply [Min] | 3.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NL-SW-EVDO-V
Cellular CDMA, EV-DO Transceiver Module 800MHz, 1.9GHz Antenna Not Included, U.FL Through Hole
Documents
Technical documentation and resources
