Technical Specifications
Parameters and characteristics for this part
| Specification | 8105000000 |
|---|---|
| Communications | USB |
| Control Method | On/Off, Proportional (PID) |
| Display Characters - Height [z] | 13.5 mm |
| Display Characters - Height [z] | 0.531 in |
| Display Type | LCD - Tri Color Characters, Backlight |
| Ingress Protection [custom] | IP65 |
| Ingress Protection [custom] | IP20 |
| Input Range [Max] | 3200 °F |
| Input Range [Max] | 1760 °C |
| Input Range [Min] | -328 °F |
| Input Range [Min] | -328 °F |
| Number of Characters Per Row | 4 |
| Number of Characters Per Row | 4 |
| Output Type | Relay, Voltage |
| Termination Style | Screw Terminal |
| Type | Temperature Controller (RTD, Type J, K, S, T) |
| Voltage - Supply [Max] | 240 VAC/VDC |
| Voltage - Supply [Min] | 100 VAC/VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information

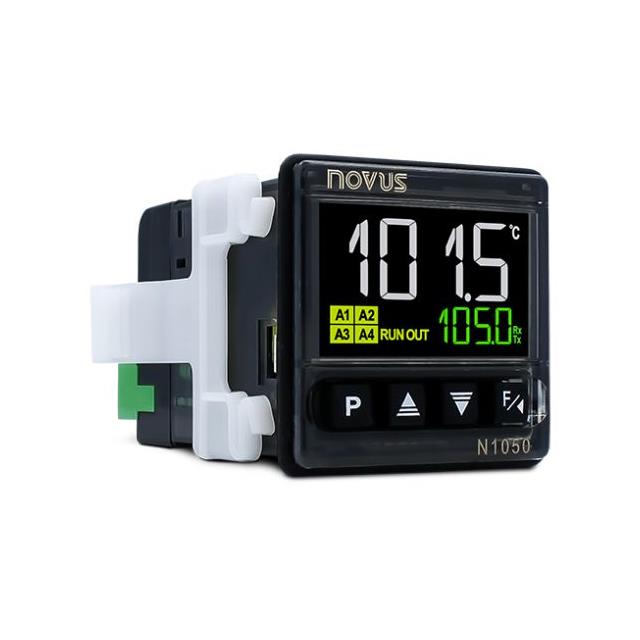

8105000000
Temperature Controller (RTD, Type J, K, S, T) 100 ~ 240VAC/VDC Panel Mount
Documents
Technical documentation and resources
