UM9636
ActiveUnion Semiconductor International Limited
IC SWITCH SPDT X 2 125OHM 10QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UM9636
ActiveUnion Semiconductor International Limited
IC SWITCH SPDT X 2 125OHM 10QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UM9636 |
|---|---|
| -3db Bandwidth | 720 MHz |
| Channel-to-Channel Matching (ΔRon) | 10 Ohm |
| Current - Leakage (IS(off)) (Max) [Max] | 100 nA |
| Mounting Type | Surface Mount |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) [Max] | 125 Ohm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

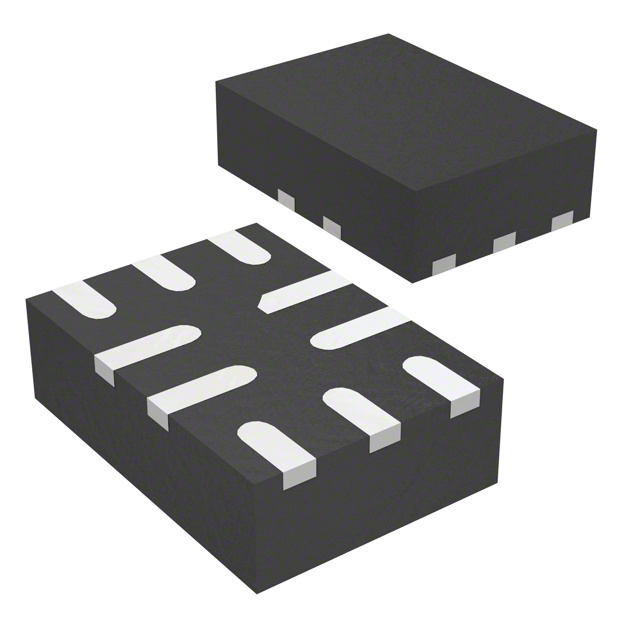

| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-QFN (1.8x1.4) |
| Switch Circuit | SPDT |
| Voltage - Supply, Single (V+) [Max] | 12 V |
| Voltage - Supply, Single (V+) [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 1.00 | |
| 2 | $ 1.00 | |||
| 10 | $ 0.92 | |||
| 100 | $ 0.70 | |||
| 500 | $ 0.59 | |||
Description
General part information
UM9636
2 Circuit IC Switch 2:1 125Ohm 10-QFN (1.8x1.4)
