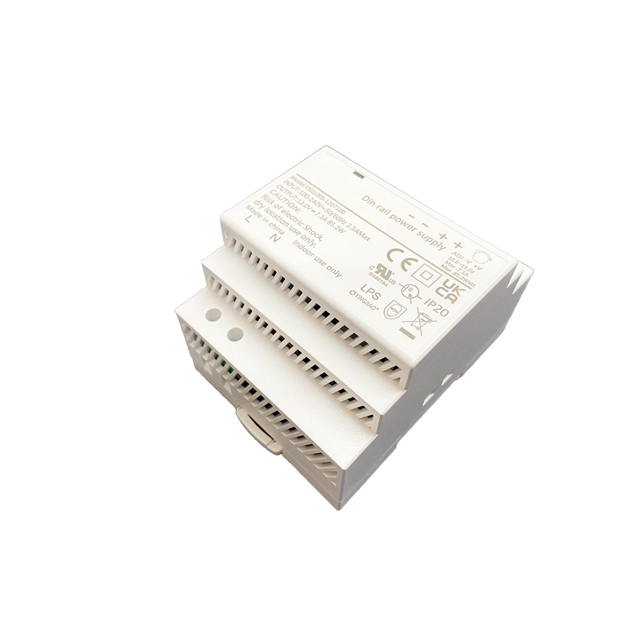

56YSD100S-4802000
ActiveIDEAL POWER
POWER SUPPLY, AC-DC, 48V, 2A ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
56YSD100S-4802000
ActiveIDEAL POWER
POWER SUPPLY, AC-DC, 48V, 2A ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 56YSD100S-4802000 |
|---|---|
| AC Voltage - Input [Max] | 264 VAC |
| AC Voltage - Input [Min] | 90 VAC |
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | TUV, EAC, BSMI, CE, UL |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | 90 % |
| Features | Adjustable Output, IP20 |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 96 W |
| Size / Dimension [x] | 3.54 in |
| Size / Dimension [x] | 90 mm |
| Size / Dimension [y] | 2.76 in |
| Size / Dimension [y] | 70 mm |
| Size / Dimension [z] | 2.28 in |
| Size / Dimension [z] | 58 mm |
| Standard Number | 60950-1, 508 |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
56YSD100S-4802000
POWER SUPPLY, AC-DC, 48V, 2A ROHS COMPLIANT: YES
Documents
Technical documentation and resources
