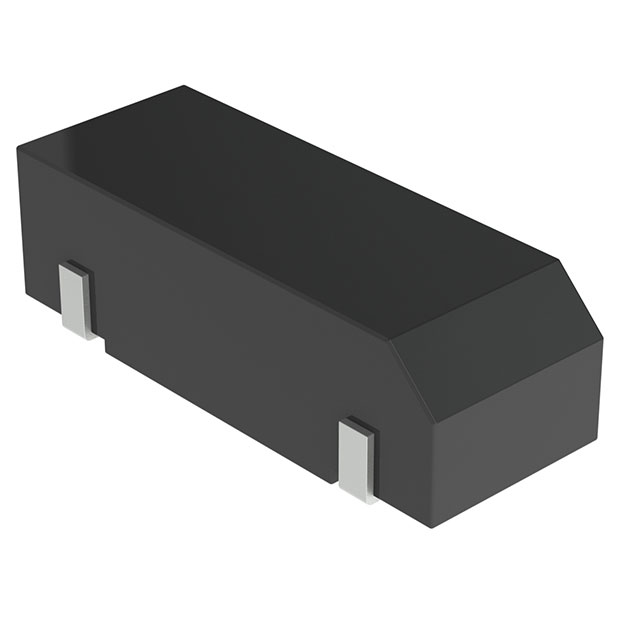

RSM200S-32.768-6-TR-NS1
ActiveRaltron Electronics
CRYSTAL 32.7680KHZ 6PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RSM200S-32.768-6-TR-NS1
ActiveRaltron Electronics
CRYSTAL 32.7680KHZ 6PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RSM200S-32.768-6-TR-NS1 |
|---|---|
| ESR (Equivalent Series Resistance) | 35 kOhms |
| Frequency | 32.768 kHz |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) [Max] [z] | 2.5 mm |
| Height - Seated (Max) [Max] [z] | 0.098 in |
| Load Capacitance | 6 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SOJ |
| Package / Case | 5.5 mm |
| Size / Dimension [x] | 8 mm |
| Size / Dimension [x] | 0.315 in |
| Size / Dimension [y] | 0.15 in |
| Size / Dimension [y] | 3.8 mm |
| Type | kHz Crystal (Tuning Fork) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.41 | |
| 10 | $ 0.35 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.26 | |||
| Digi-Reel® | 1 | $ 0.41 | ||
| 10 | $ 0.35 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.26 | |||
| Tape & Reel (TR) | 3000 | $ 0.23 | ||
| 6000 | $ 0.22 | |||
| 9000 | $ 0.22 | |||
| 15000 | $ 0.21 | |||
| 21000 | $ 0.21 | |||
| 30000 | $ 0.20 | |||
Description
General part information
RSM200S-32.768-6-TR-NS1
32.768 kHz ±20ppm Crystal 6pF 35 kOhms 4-SOJ, 5.50mm pitch
