SZP-C-0L02
ActiveSynzen
4GLTE ANT 698-2690MHZ SMD CHIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SZP-C-0L02
ActiveSynzen
4GLTE ANT 698-2690MHZ SMD CHIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SZP-C-0L02 |
|---|---|
| Antenna Type | Chip |
| Applications | 4G, EDGE, DCS, GPRS, CDMA, IMT, 3G, GSM, HSPA, LTE, UMTS, PCS, WCDMA |
| Frequency (Center/Band) | 1.94 GHz, 2.595 GHz, 829 MHz, 2.35 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 798 MHz, 2.69 GHz, 2.17 GHz, 960 MHz, 2.4 GHz |
| Frequency Range [Min] | 1.71 GHz, 2.3 GHz, 824 MHz, 698 MHz, 2.5 GHz |
| Height (Max) | 3.3 mm |
| Height (Max) [Max] [z] | 0.13 in |
| Mounting Type | Surface Mount |
| Number of Bands [custom] | 5 |
| Power - Max [Max] | 5 W |
| Return Loss | -5 dB, -7.5 dB, -6 dB |
| RF Family/Standard | Cellular |
| Termination | Solder |
| VSWR | 2.9, 3.25, 3.1, 3.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5 | $ 3.80 | |
| 20 | $ 3.50 | |||
| 100 | $ 3.22 | |||
| 250 | $ 2.95 | |||
| 500 | $ 2.65 | |||
| 1000 | $ 2.20 | |||
| 2000 | $ 2.05 | |||
| 5000 | $ 1.90 | |||
| 10000 | $ 1.79 | |||
Description
General part information

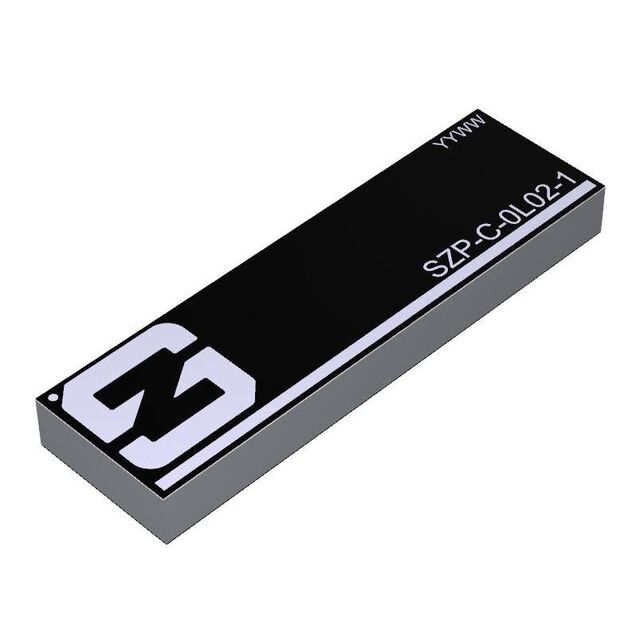

SZP-C-0L02
RF ANTENNA 3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA Chip Solder Surface Mount
