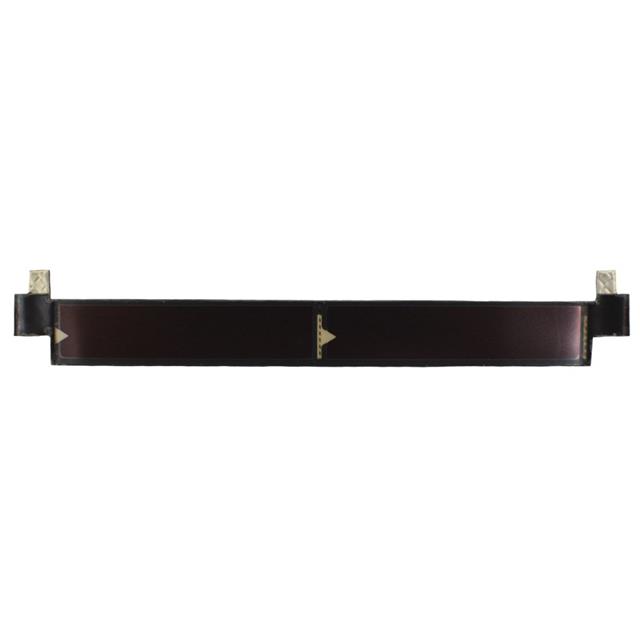

INP2.4-10X94T
ActivePowerFilm Inc.
SOLAR CELL 0.033MW&1.6V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
INP2.4-10X94T
ActivePowerFilm Inc.
SOLAR CELL 0.033MW&1.6V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | INP2.4-10X94T |
|---|---|
| Current - Short Circuit (Isc) | 15.8 mA |
| Current @ Pmpp | 105 µA |
| Package / Case | Cells |
| Power (Watts) - Max [Max] | 219 µW |
| Size / Dimension [x] | 94 mm |
| Size / Dimension [x] | 3.701 " |
| Size / Dimension [y] | 10 mm |
| Size / Dimension [y] | 0.394 in |
| Size / Dimension [z] | 0.009 " |
| Size / Dimension [z] | 0.22 mm |
| Type | Amorphous |
| Voltage - Open Circuit | 3.7 V |
| Voltage @ Pmpp [custom] | 2.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 9.21 | |
| 10 | $ 7.80 | |||
| 50 | $ 6.94 | |||
| 100 | $ 6.62 | |||
| 250 | $ 6.21 | |||
| 500 | $ 5.90 | |||
Description
General part information
INP2.4-10X94T
Amorphous Solar Cell 219 µW 3.7 V
