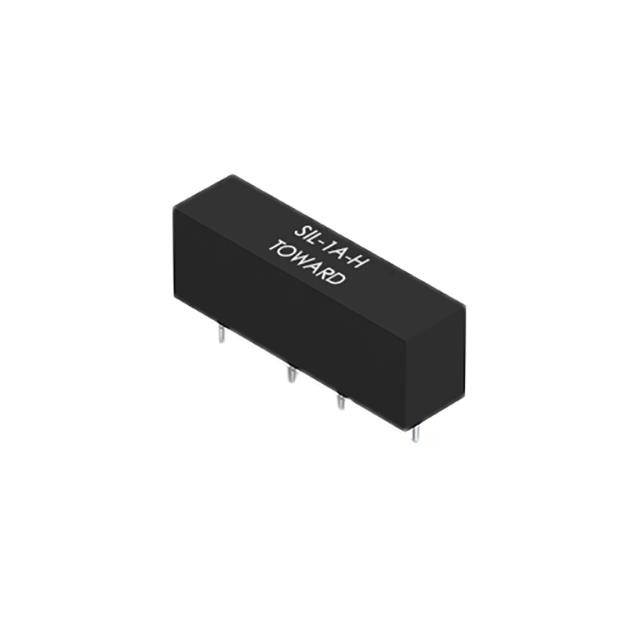

SIL-1A05DH
ActiveBright Toward Industrial Co., Ltd.
3KV/2.5A HIGH VOLTAGE REED RELAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SIL-1A05DH
ActiveBright Toward Industrial Co., Ltd.
3KV/2.5A HIGH VOLTAGE REED RELAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SIL-1A05DH |
|---|---|
| Coil Current | 22.7 mA |
| Coil Resistance | 220 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 1 A |
| Features | Diode |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 1 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 0.25 ms |
| Switching Voltage [Max] | 1000 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 13.01 | |
| 10 | $ 11.36 | |||
| 25 | $ 10.77 | |||
| 50 | $ 10.34 | |||
| 100 | $ 9.93 | |||
| 250 | $ 9.41 | |||
| 500 | $ 9.03 | |||
| 1000 | $ 8.67 | |||
Description
General part information
SIL-1A05DH
3KV/2.5A HIGH VOLTAGE REED RELAY
