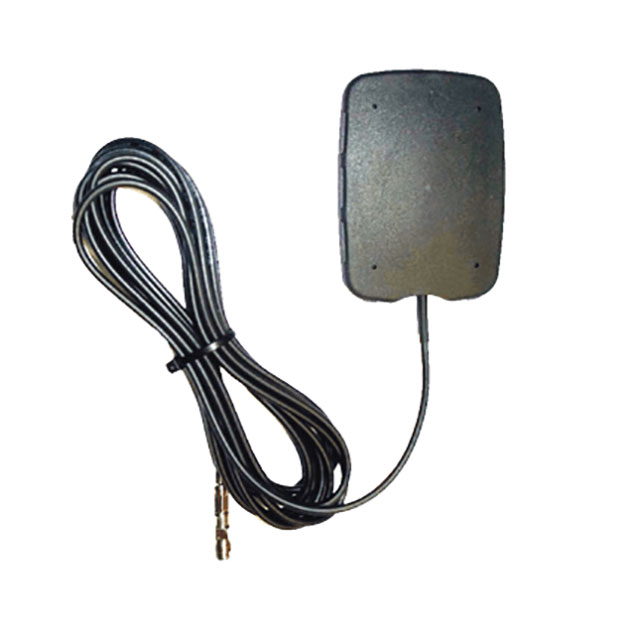

2215902/3SMA
ActiveSIRIO Antenne
1/2 ,868-960 MHZ & 1710-2170MHZ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2215902/3SMA
ActiveSIRIO Antenne
1/2 ,868-960 MHZ & 1710-2170MHZ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2215902/3SMA |
|---|---|
| Features | Cable |
| Features | 3 m |
| Frequency (Center/Band) | 914 MHz, 1.94 GHz |
| Frequency Range [Max] | 2.17 GHz, 960 MHz |
| Frequency Range [Min] | 1.71 GHz, 868 MHz |
| Gain | 2.14 dBi |
| Height (Max) [Max] | 10 mm |
| Height (Max) [Max] | 0.394 in |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | General ISM |
| Termination | FME Female, SMA Male |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 15.20 | |
Description
General part information
2215902/3SMA
RF ANTENNA GSM, ISM, UMTS FME Female, SMA Male Adhesive
