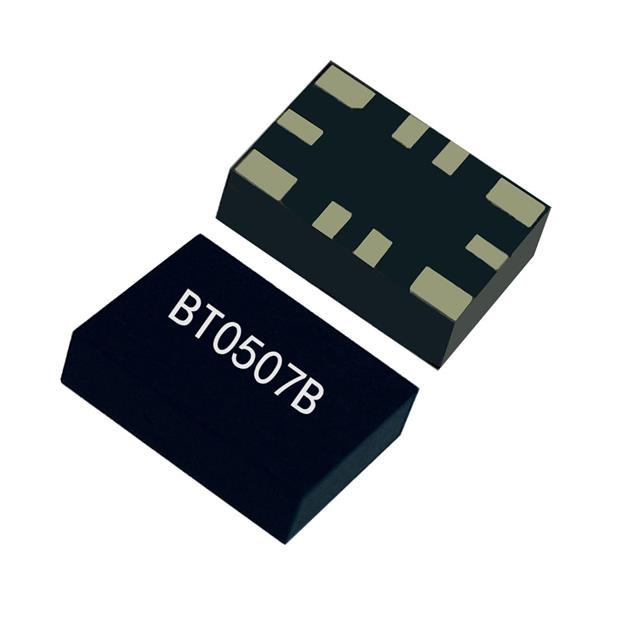

BT0507BH3I507CN30.72
ActiveXTALTQ
TCXO 7050-10PADS 30.72MHZ CMOS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BT0507BH3I507CN30.72
ActiveXTALTQ
TCXO 7050-10PADS 30.72MHZ CMOS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BT0507BH3I507CN30.72 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 15 mA |
| Frequency | 30.72 MHz |
| Frequency Stability | 500 ppb |
| Height - Seated (Max) [Max] [z] | 2.1 mm |
| Height - Seated (Max) [Max] [z] | 0.083 " |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | HCMOS |
| Package / Case | 10-SMD, No Lead |
| Size / Dimension [x] | 7.1 mm |
| Size / Dimension [x] | 0.28 in |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Type | TCXO |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 9.24 | |
| 10 | $ 7.97 | |||
| 50 | $ 7.20 | |||
| 100 | $ 6.89 | |||
| 500 | $ 6.23 | |||
| 1000 | $ 5.97 | |||
Description
General part information
BT0507BH3I507CN30.72
30.72 MHz TCXO HCMOS Oscillator 3.3V 10-SMD, No Lead
