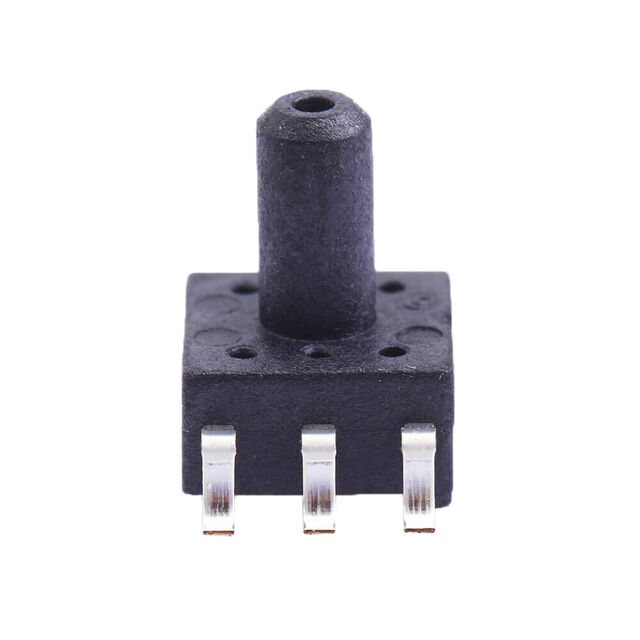

XGZP6859A040KPG33
ActiveCFSensor
PRESSURE SENSOR 5.8PSI(0~40KPA)
Deep-Dive with AI
Search across all available documentation for this part.
XGZP6859A040KPG33
ActiveCFSensor
PRESSURE SENSOR 5.8PSI(0~40KPA)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XGZP6859A040KPG33 |
|---|---|
| Accuracy | 2 % |
| Applications | Board Mount |
| Features | Temperature Compensated, Amplified Output |
| Maximum Pressure [Max] | 14.5 PSI |
| Maximum Pressure [Max] | 100 kPa |
| Mounting Type | Surface Mount |
| Operating Pressure | 40 kPa |
| Operating Pressure | 5.8 PSI |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -20 C |
| Output [Max] | 2.7 V |
| Output [Min] | 0.2 V |
| Output Type | Analog |
| Package / Case | 6-SMD Module |
| Port Size | Male - Tube |
| Port Size | 3 mm, 0.12 " |
| Port Style | Barbless |
| Pressure Type | Gauge |
| Supplier Device Package | 6-SMT |
| Termination Style | Surface Mount (SMD,SMT) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 5 | $ 6.00 | |
| 10 | $ 5.75 | |||
| 25 | $ 5.50 | |||
| 100 | $ 5.25 | |||
| 500 | $ 4.46 | |||
Description
General part information
XGZP6859A040KPG33
Pressure Sensor 5.8PSI (40kPa) Gauge Male - 0.12" (3mm) Tube 0.2 V ~ 2.7 V 6-SMD Module
Documents
Technical documentation and resources
No documents available
