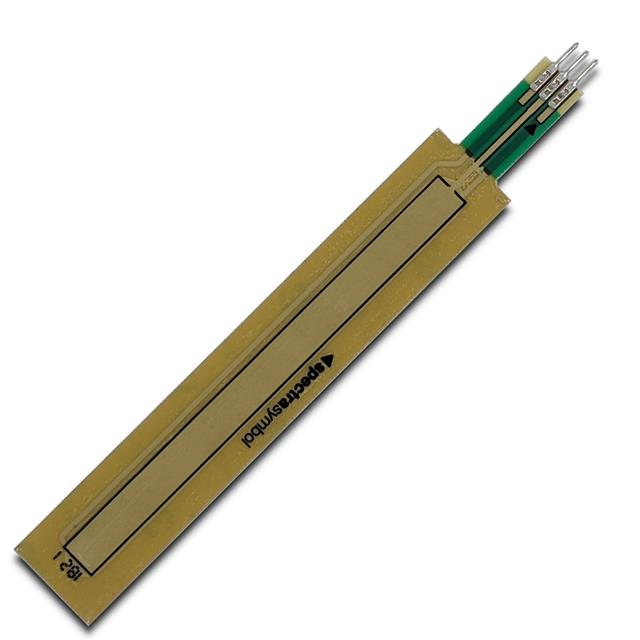

HP-L-0400-203-1%-MP
ActiveSpectra Symbol
SENSOR LINEAR 400MM PC PIN
Deep-Dive with AI
Search across all available documentation for this part.
HP-L-0400-203-1%-MP
ActiveSpectra Symbol
SENSOR LINEAR 400MM PC PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HP-L-0400-203-1%-MP |
|---|---|
| Actuator Type | Flexible Membrane - Linear |
| For Measuring | Linear Position |
| Linear Range [Max] | 400 mm |
| Linear Range [Max] | 15.75 in |
| Linear Range [Min] | 0 mm |
| Linear Range [Min] | 0 in |
| Linearity | 1 % |
| Mounting Type | Custom |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Resistive |
| Package / Case | Sensor Strip |
| Resistance | 20 kOhms |
| Resistance Tolerance | 20 % |
| Technology | Resistive |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 50.37 | |
| 10 | $ 40.26 | |||
Description
General part information
HP-L-0400-203-1%-MP
Resistive Sensor Linear Position Flexible Membrane - Linear PC Pin
Documents
Technical documentation and resources
No documents available
