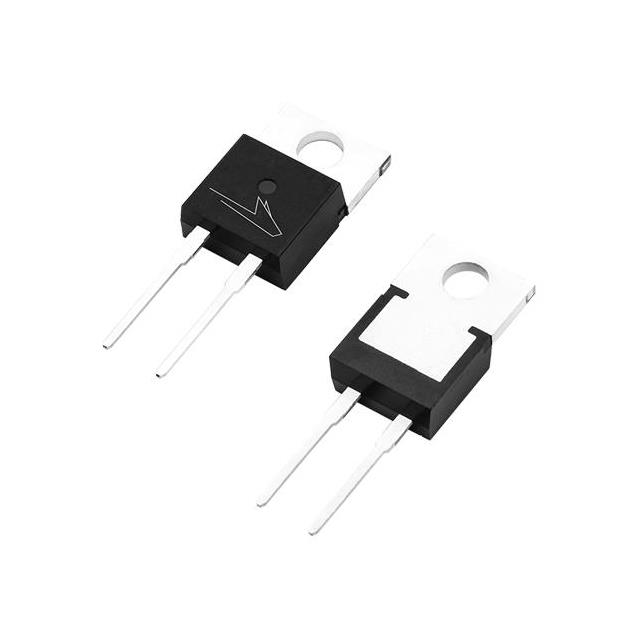

E4D20120A
ActiveWolfspeed
DIODE SIL CARB 1.2KV 54.5A TO220
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
E4D20120A
ActiveWolfspeed
DIODE SIL CARB 1.2KV 54.5A TO220
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | E4D20120A |
|---|---|
| Capacitance @ Vr, F | 1500 pF |
| Current - Average Rectified (Io) | 54.5 A |
| Current - Reverse Leakage @ Vr | 200 µA |
| Grade | Automotive |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -55 C |
| Package / Case | TO-220-2 |
| Qualification | AEC-Q101 |
| Reverse Recovery Time (trr) | 0 ns |
| Speed | No Recovery Time |
| Supplier Device Package | TO-220-2 |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1.2 kV |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 18.14 | |
| 50 | $ 16.55 | |||
Description
General part information
E4D20120A
Diode 1200 V 54.5A Through Hole TO-220-2
