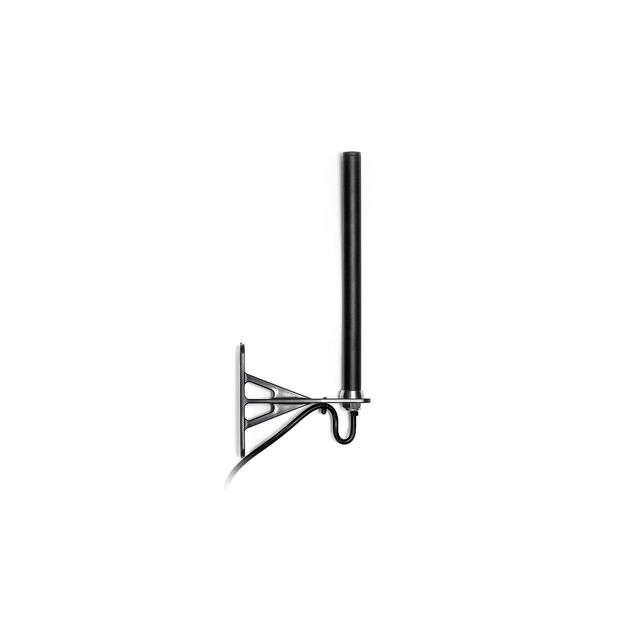

2J2115B-B07H
Active2J Antennas
BAYONET 868/915MHZ/SIGFOX/LORA/L
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2J2115B-B07H
Active2J Antennas
BAYONET 868/915MHZ/SIGFOX/LORA/L
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2J2115B-B07H |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | Sigfox, ISM, LoRa, Zigbee™ |
| Features | Cable |
| Features | 3 m |
| Frequency (Center/Band) | 866.5 MHz, 915 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 870 MHz, 928 MHz |
| Frequency Range [Min] | 902 MHz, 863 MHz |
| Gain | 3.2 dBi, 2.9 dBi |
| Height (Max) [Max] [z] | 220 mm |
| Height (Max) [Max] [z] | 8.661 in |
| Ingress Protection | IP67 |
| Mounting Type | Wall Mount |
| Number of Bands | 2 |
| Power - Max [Max] | 25 W |
| RF Family/Standard | General ISM |
| VSWR | 1.4, 1.3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 36.97 | |
| 10 | $ 27.25 | |||
| 25 | $ 24.76 | |||
Description
General part information
2J2115B-B07H
RF ANTENNA ISM, LoRa, Sigfox, Zigbee™ Whip, Straight SMA Male Wall Mount
