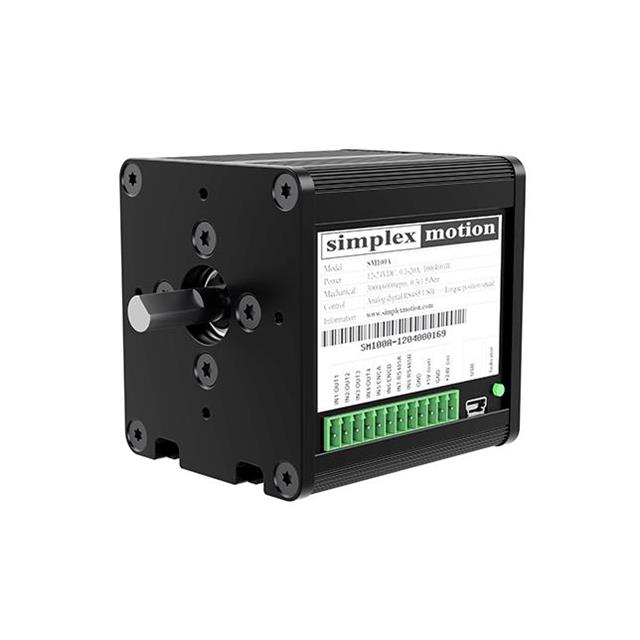

SCM100-E
ActiveSimplex Motion AB
SPEED CONTROL MOTOR 100W, ENCAPS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SCM100-E
ActiveSimplex Motion AB
SPEED CONTROL MOTOR 100W, ENCAPS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SCM100-E |
|---|---|
| Features | Integrated Controller |
| Function | Servomotor |
| Motor Type | Brushless (BLDC) |
| Power - Rated | 100 W |
| RPM | 3000 RPM |
| Termination Style | Connector |
| Torque - Rated (oz-in / mNm) | 320 mNm |
| Torque - Rated (oz-in / mNm) | 45.32 oz-in |
| Type | DC Motor |
| Voltage - Rated [Max] | 24 V |
| Voltage - Rated [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 485.00 | |
| 5 | $ 470.00 | |||
Description
General part information
SCM100-E
Brushless (BLDC) DC Motor Servomotor 3000 RPM 100W 12 ~ 24VDC
Documents
Technical documentation and resources
