Technical Specifications
Parameters and characteristics for this part
| Specification | 204G CC BC-3LP |
|---|---|
| Backlight | LED - White |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Display Format [x] | 20 |
| Display Format [y] | 4 |
| Display Mode | Transmissive |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size [x] | 0.55 mm |
| Dot Size [y] | 0.55 mm |
| Number of Characters | 20 |
| Outline L x W x H [x] | 98 mm |
| Outline L x W x H [y] | 60 mm |
| Outline L x W x H [z] | 13.6 mm |
| Viewing Area [x] | 77 mm |
| Viewing Area [y] | 25.2 mm |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.12 | |
| 10 | $ 21.80 | |||
| 100 | $ 18.72 | |||
| 500 | $ 17.39 | |||
Description
General part information

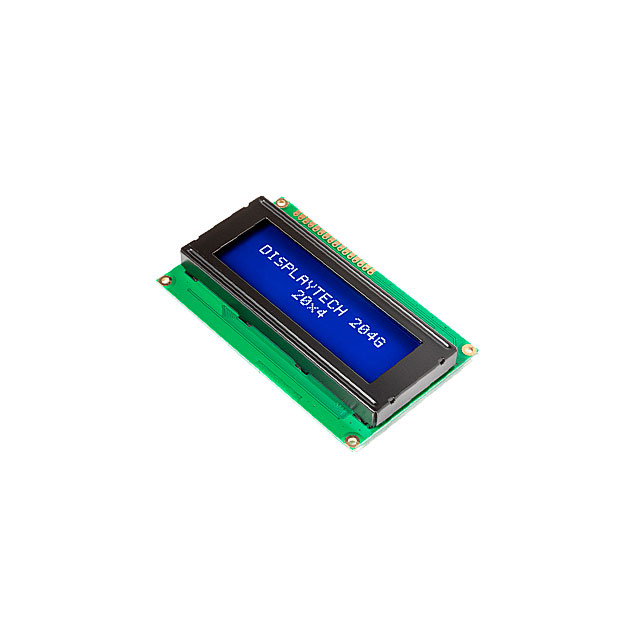

204G CC BC-3LP
Character Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - White 98.00mm x 60.00mm x 13.60mm
