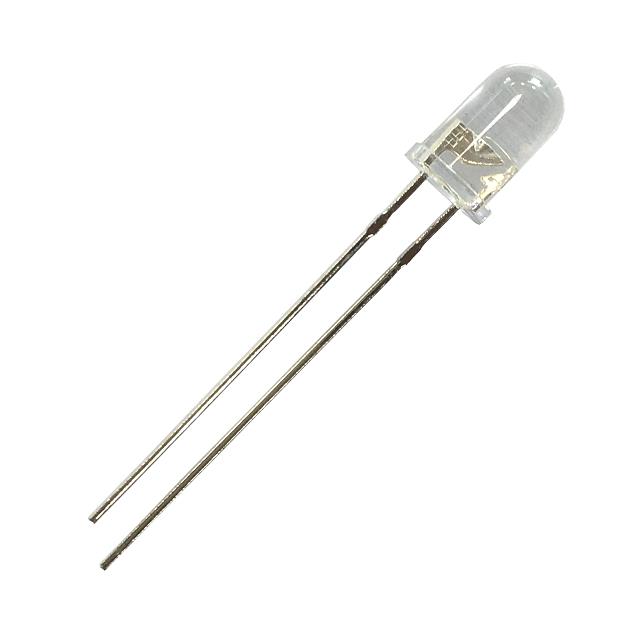

BAB5H20G-ZIR-020mA
ActiveSolidlite
5MM THROUGH HOLE IR LED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BAB5H20G-ZIR-020mA
ActiveSolidlite
5MM THROUGH HOLE IR LED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BAB5H20G-ZIR-020mA |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 20 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Top View |
| Radiant Intensity (Ie) Min @ If [Min] | 28 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 20 ° |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 10 | $ 0.13 | |
| 100 | $ 0.12 | |||
| 500 | $ 0.09 | |||
Description
General part information
BAB5H20G-ZIR-020mA
Infrared (IR) Emitter 940nm 1.2V 20mA 28mW/sr @ 20mA 20°
