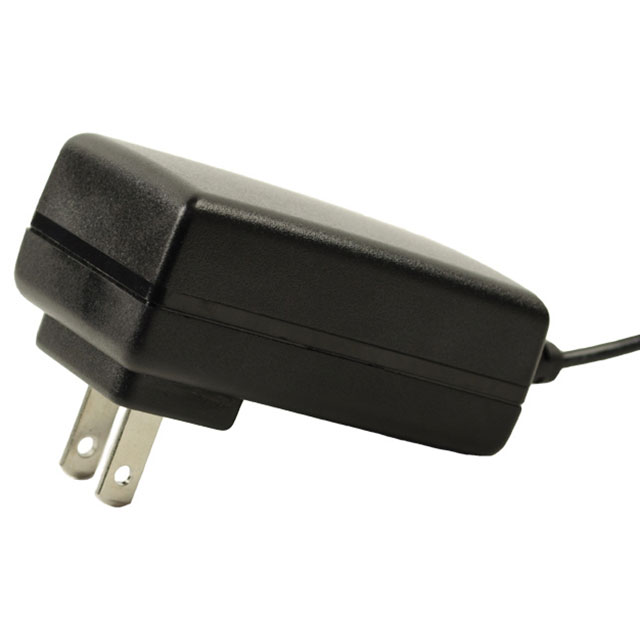

SWM30-12-NV-P6
ActiveCUI Inc.
AC/DC WALL MOUNT ADAPTER 12V 36W
Deep-Dive with AI
Search across all available documentation for this part.
SWM30-12-NV-P6
ActiveCUI Inc.
AC/DC WALL MOUNT ADAPTER 12V 36W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SWM30-12-NV-P6 |
|---|---|
| Applications | Medical |
| Approval Agency | FCC, EN, CSA, IEC, UL, PSE, CB Scheme |
| Cord Length | 1.2 m |
| Cord Length | 47.2 in |
| Current - Output (Max) [Max] | 3 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 36 W |
| Region Utilized | North America |
| Size / Dimension [x] | 2.99 in |
| Size / Dimension [x] | 75.9 mm |
| Size / Dimension [y] | 1.69 in |
| Size / Dimension [y] | 42.9 mm |
| Size / Dimension [z] | 29.5 mm |
| Size / Dimension [z] | 1.16 " |
| Standard Number | 61000-3-3, 60601-1, C22.2 No. 60601-1, 55032 Class B, 55024, 60950-1, 61000-3-2 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1040 | $ 16.95 | |
Description
General part information
SWM30-12-NV-P6
12V 36 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
