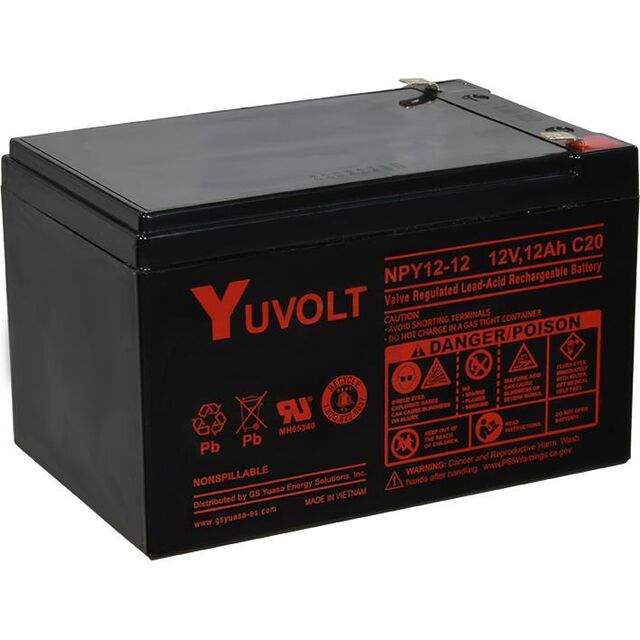

NPY12-12-250
ActiveGS Yuasa Energy Solutions
BATTERY LEAD ACID 12V 12AH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NPY12-12-250
ActiveGS Yuasa Energy Solutions
BATTERY LEAD ACID 12V 12AH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NPY12-12-250 |
|---|---|
| Battery Chemistry | Sealed Lead Acid (SLA, VRLA) |
| Capacity | 12 Ah |
| Discharge Rate | 20 Hr |
| Shelf Life | 12 Months |
| Shipping Info | Due to possible restrictions, a change in ship method may be required. |
| Size / Dimension [x] | 151 mm |
| Size / Dimension [x] | 5.94 in |
| Size / Dimension [y] | 98 mm |
| Size / Dimension [y] | 3.86 in |
| Size / Dimension [z] | 3.84 " |
| Size / Dimension [z] | 97.5 mm |
| Standard Charge Current | 3 A |
| Standard Charge Time | 20 Hrs |
| Termination Style | Spade, .250" (6.3mm) |
| Voltage - Rated | 12 VDC |
| Weight | 3500 g |
| Weight | 7.7 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 34.60 | |
| 4 | $ 34.15 | |||
| 120 | $ 33.97 | |||
| 240 | $ 33.26 | |||
Description
General part information
NPY12-12-250
12 V Sealed Lead Acid (SLA, VRLA) Battery Rechargeable (Secondary) 12Ah
