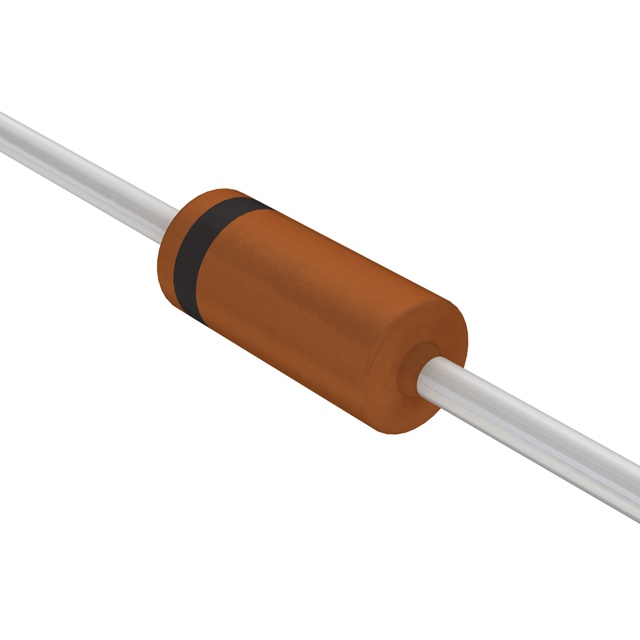

1N5262B TR PBFREE
ActiveCentral Semiconductor Corp
DIODE ZENER 51V 500MW DO35
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1N5262B TR PBFREE
ActiveCentral Semiconductor Corp
DIODE ZENER 51V 500MW DO35
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1N5262B TR PBFREE |
|---|---|
| Current - Reverse Leakage @ Vr | 100 nA |
| Impedance (Max) (Zzt) [Max] | 125 Ohms |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | Axial, DO-35, DO-204AH |
| Power - Max [Max] | 500 mW |
| Supplier Device Package | DO-35 |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Zener (Nom) (Vz) | 51 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.36 | |
| 10 | $ 0.28 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.11 | |||
| 2000 | $ 0.10 | |||
| 5000 | $ 0.09 | |||
| Tape & Reel (TR) | 10000 | $ 0.08 | ||
Description
General part information
1N5262B TR PBFREE
Zener Diode 51 V 500 mW ±5% Through Hole DO-35
