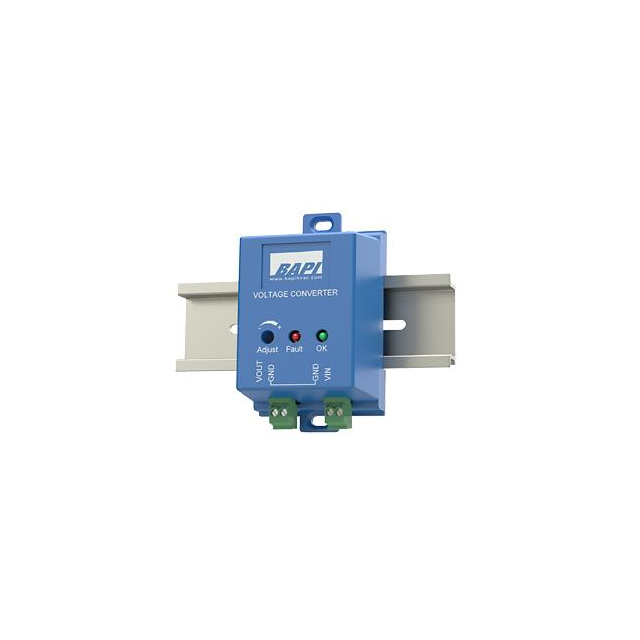

BA/VC350A-EZ-ADJ
ActiveBAPI
AC/DC DIN RAIL SUPPLY 5-24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BA/VC350A-EZ-ADJ |
|---|---|
| AC Voltage - Input [Max] | 28 VAC |
| AC Voltage - Input [Min] | 24 VAC |
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 350 mA |
| DC Voltage - Input (Max) [Max] | 35 V |
| DC Voltage - Input (Min) [Min] | 31 V |
| Features | Adjustable Output |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 35.1 mm |
| Size / Dimension [x] | 1.38 " |
| Size / Dimension [y] | 1.93 in |
| Size / Dimension [y] | 49 mm |
| Size / Dimension [z] | 2.75 in |
| Size / Dimension [z] | 69.9 mm |
| Voltage - Output 1 [Max] | 24 V |
| Voltage - Output 1 [Min] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BA/VC350A-EZ-ADJ
AC/DC DIN RAIL SUPPLY 5-24V
