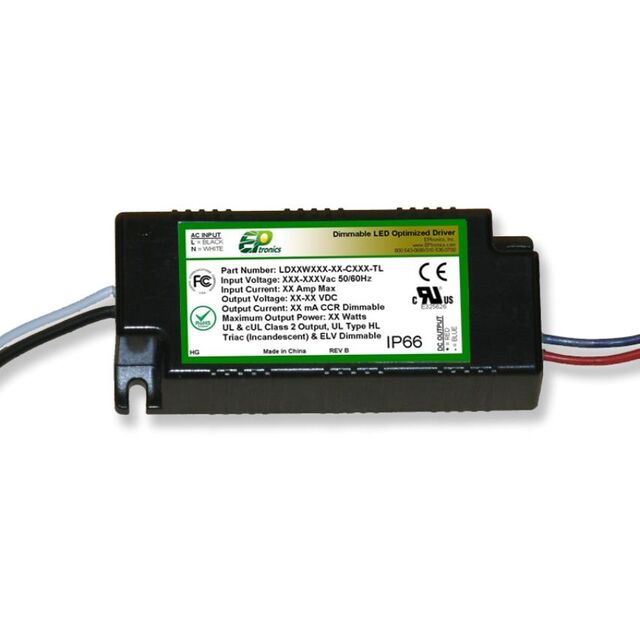

LD17W-12-C1400
ActiveEPtronics, Inc.
6~12V@1400MA, NON~DIMMING
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LD17W-12-C1400
ActiveEPtronics, Inc.
6~12V@1400MA, NON~DIMMING
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LD17W-12-C1400 |
|---|---|
| Approval Agency | CE, FCC, cURus |
| Current - Output (Max) [Max] | 1.4 A |
| Dimming | Non-Dimmable |
| Efficiency | 72 % |
| Features | SCP, OCP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 17 W |
| Ratings | IP66 |
| Size / Dimension [x] | 8.43 in |
| Size / Dimension [x] | 214.1 mm |
| Size / Dimension [y] | 0.98 in |
| Size / Dimension [y] | 24.9 mm |
| Size / Dimension [z] | 22.1 mm |
| Size / Dimension [z] | 0.87 in |
| Standard Number | C22.2, UL 8750 |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 100 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 12 V |
| Voltage - Output [Min] | 6 V |
| Weight | 0.438 lb |
| Weight | 198.45 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.04 | |
Description
General part information
LD17W-12-C1400
1.4A 6 ~ 12V Constant Current LED Driver AC DC Converter Topology 1 Output
