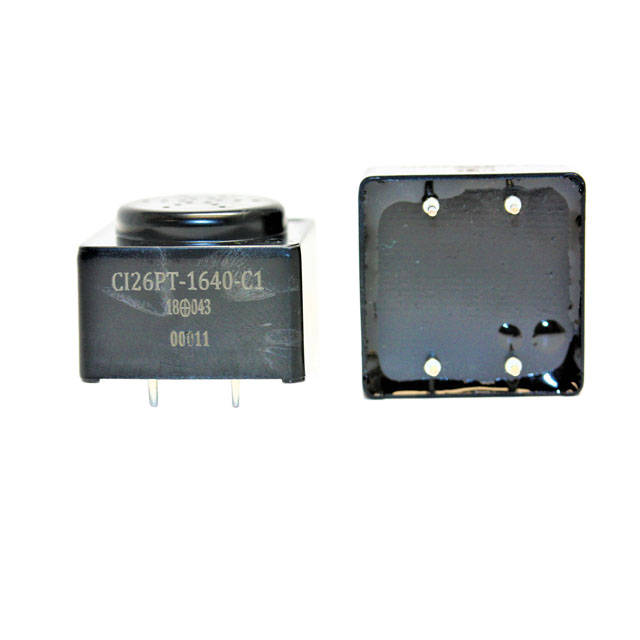

CI26P-16T40-C-1X
ActiveChallenge Electronics
BUZZER PIEZO 12V 26X26MM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CI26P-16T40-C-1X
ActiveChallenge Electronics
BUZZER PIEZO 12V 26X26MM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CI26P-16T40-C-1X |
|---|---|
| Current - Supply | 60 mA |
| Driver Circuitry | Internally Driven, Indicator |
| Frequency | 400 Hz |
| Height - Seated (Max) [Max] [z] | 0.776 in |
| Height - Seated (Max) [Max] [z] | 19.7 mm |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Input Type | DC |
| Mounting Type | Through Hole |
| Operating Mode | Single Tone |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Port Location | Top |
| Size / Dimension [x] | 1.024 in, 26 mm |
| Size / Dimension [y] | 26 mm, 1.024 " |
| Sound Pressure Level (SPL) | 95 dB |
| Technology | Piezo |
| Termination | PC Pins |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 16 V |
| Voltage Range [Min] | 8 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.18 | |
| 10 | $ 5.85 | |||
| 25 | $ 5.39 | |||
| 40 | $ 5.18 | |||
| 80 | $ 4.87 | |||
| 230 | $ 4.44 | |||
| 440 | $ 4.24 | |||
Description
General part information
CI26P-16T40-C-1X
Buzzers Indicator, Internally Driven Piezo 12 V 60mA 400Hz 95dB @ 12V, 10cm Through Hole PC Pins
