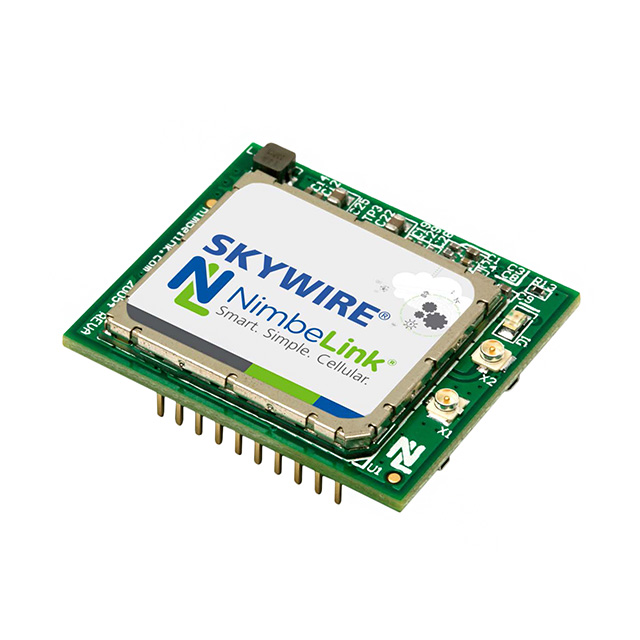

NL-SW-LTE-WM14-C
ObsoleteNimbeLink, LLC
RF TXRX MOD CELL U.FL TH
Deep-Dive with AI
Search across all available documentation for this part.
NL-SW-LTE-WM14-C
ObsoleteNimbeLink, LLC
RF TXRX MOD CELL U.FL TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NL-SW-LTE-WM14-C |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Frequency | 1900 MHz, 700 MHz, 1.7 GHz |
| Modulation | QPSK |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 20-DIP Module |
| Power - Output | 25.7 dBm |
| Protocol | LTE |
| RF Family/Standard | Cellular |
| Sensitivity | -96.3 dBm |
| Serial Interfaces | UART, USB |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NL-SW-LTE-WM14-C
Cellular LTE Transceiver Module 700MHz, 1.7GHz, 1.9GHz Antenna Not Included, U.FL Through Hole
Documents
Technical documentation and resources
