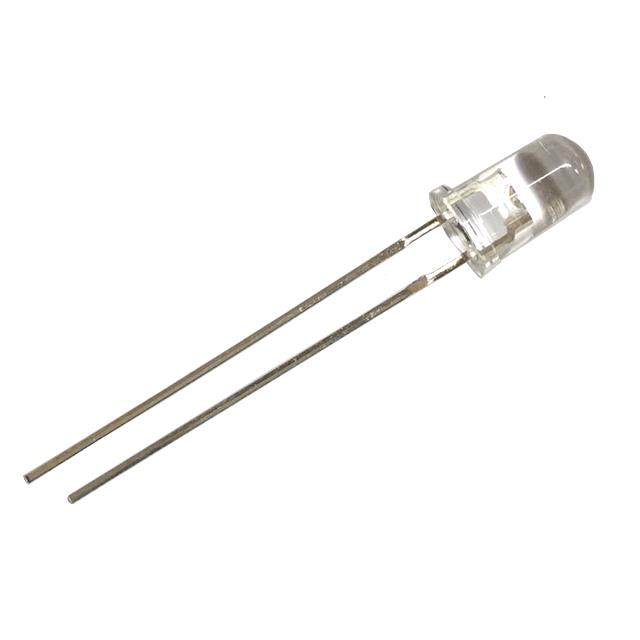

BF5H30G-YLR-050mA
ActiveSolidlite
5MM THROUGH HOLE IR LED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BF5H30G-YLR-050mA
ActiveSolidlite
5MM THROUGH HOLE IR LED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BF5H30G-YLR-050mA |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 50 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Orientation | Top View |
| Radiant Intensity (Ie) Min @ If | 25 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 30 ° |
| Voltage - Forward (Vf) (Typ) | 1.6 V |
| Wavelength | 850 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 10 | $ 0.20 | |
| 100 | $ 0.18 | |||
| 500 | $ 0.14 | |||
Description
General part information
BF5H30G-YLR-050mA
Infrared (IR) Emitter 850nm 1.6V 50mA 25mW/sr @ 50mA 30°
