MEA-5GGG-SMA-SM/100-00244-01
ActiveMaxtena Inc
5GNR AND GPS/GLONASS SCREW MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
MEA-5GGG-SMA-SM/100-00244-01
ActiveMaxtena Inc
5GNR AND GPS/GLONASS SCREW MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MEA-5GGG-SMA-SM/100-00244-01 |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | GPS, GLONASS |
| Features | Cable - 2m |
| Frequency (Center/Band) | 1.604 GHz, 788.5 MHz, 2.058 GHz, 4.15 GHz, 1.575 GHz, 5.537 GHz |
| Frequency Group | Wide Band |
| Gain | 1.9 dBi, 1.2 dBi, 26 dBi, 1.1 dBi, 3.6 dBi |
| Height (Max) [Max] | 81 mm |
| Height (Max) [Max] | 3.189 in |
| Ingress Protection | IP67, IP69 |
| Mounting Type | Screw |
| Number of Bands | 6 |
| Return Loss | -20 dB, -11.7 dB, -13.6 dB, -8.1 dB, -8.4 dB |
| RF Family/Standard | Navigation |
| VSWR | 1.7, 3.1, 2.5, 1.8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 42.00 | |
| 10 | $ 39.00 | |||
| 25 | $ 37.00 | |||
Description
General part information

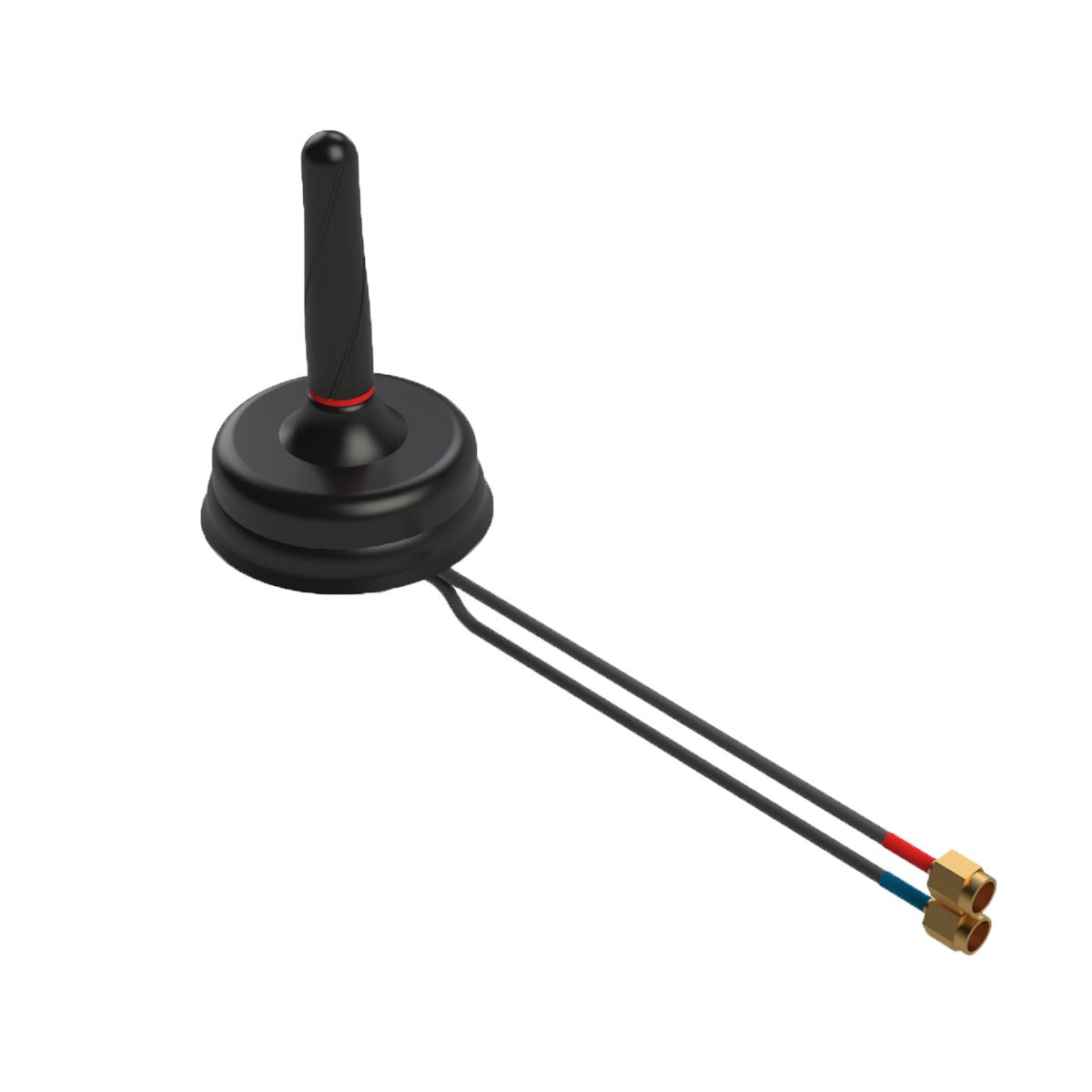

MEA-5GGG-SMA-SM/100-00244-01
788.5MHz, 1.575GHz, 1.604GHz, 2.058GHz, 4.15GHz, 5.537GHz GLONASS, GPS Whip, Straight RF Antenna 617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 1.598GHz ~ 1.61GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz 1.1dBi, 26dBi, 26dBi, 3.6dBi, 1.9dBi, 1.2dBi SMA Male Screw
Documents
Technical documentation and resources
No documents available
