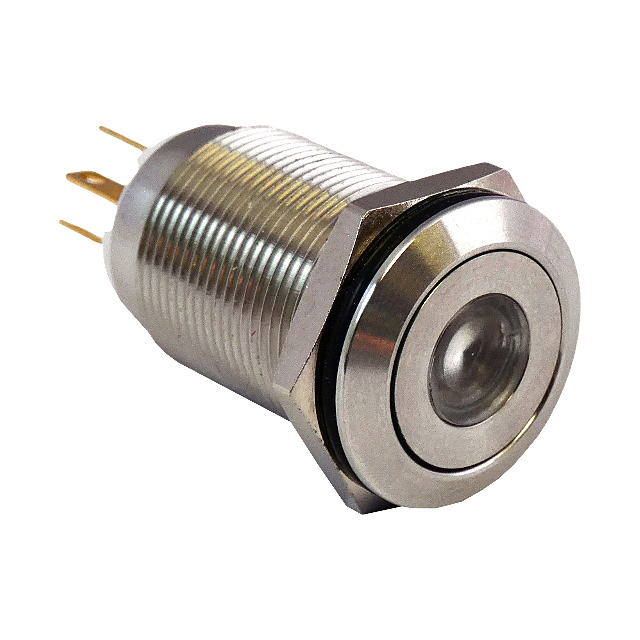

SW19STM135
ActiveLinrose Electronics, Inc.
SWITCH PB SOLDER TAG MOM DOT 110
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SW19STM135
ActiveLinrose Electronics, Inc.
SWITCH PB SOLDER TAG MOM DOT 110
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SW19STM135 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | DPST-NO/NC |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 5 A |
| Electrical Life | 50000 Cycles |
| Illumination Type, Color | LED, Yellow |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [diameter] | 19 mm |
| Switch Function | Off-Mom, On-Mom |
| Termination Style | Solder Lug |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SW19STM135
Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
