09352250401
ActiveHARTING Technology Group

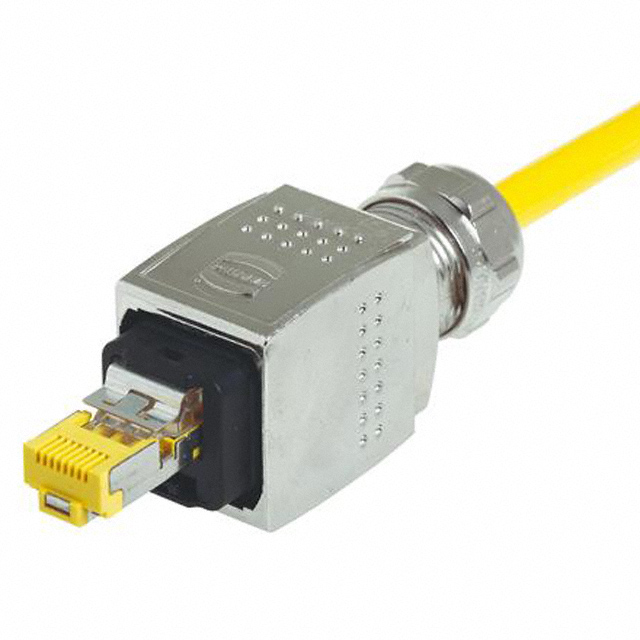

MODULAR CONNECTOR, RJ45 PLUG, 1 X 1 (PORT), 8P8C, CAT6, IP65, IP67, CABLE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
09352250401
ActiveHARTING Technology Group
MODULAR CONNECTOR, RJ45 PLUG, 1 X 1 (PORT), 8P8C, CAT6, IP65, IP67, CABLE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 09352250401 |
|---|---|
| Cable Type | Round Cable, Solid, Stranded Wires |
| Connector Type | Plug |
| Current Rating (Amps) | 1.5 A |
| Features | Housing, Cable Clamp |
| Ingress Protection | IP67, IP65 |
| Length | 2.874 in |
| Length | 73 mm |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Ratings | Cat6 |
| Shielding | Shielded |
| Termination | IDC |
| Voltage Rating | 125 VDC |
| Wire Gauge [Max] | 27 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
09352250401
Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat6 IDC
