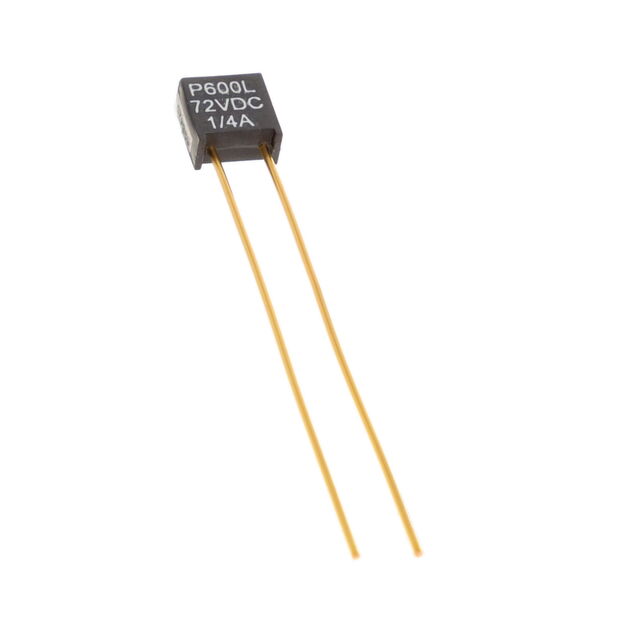

P600L-72-1/4
ActiveAEM, Inc.
FUSE, HIGH REL, 72V; 1/4A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P600L-72-1/4
ActiveAEM, Inc.
FUSE, HIGH REL, 72V; 1/4A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P600L-72-1/4 |
|---|---|
| Approval Agency | TUV |
| Current Rating (Amps) | 0.25 A |
| DC Cold Resistance | 3.125 Ohms |
| Fuse Type | Board Mount |
| Melting I²t | 11.719 I²t |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Box |
| Response Time | Fast Blow |
| Size / Dimension [x] | 0.28 in |
| Size / Dimension [x] | 7.11 mm |
| Size / Dimension [y] | 0.145 in |
| Size / Dimension [y] | 3.68 mm |
| Size / Dimension [z] | 6.86 mm |
| Size / Dimension [z] | 0.27 " |
| Voltage Rating - DC | 72 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 565.10 | |
| 5 | $ 468.03 | |||
| 10 | $ 431.23 | |||
Description
General part information
P600L-72-1/4
250 mA AC 72 V DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Box
