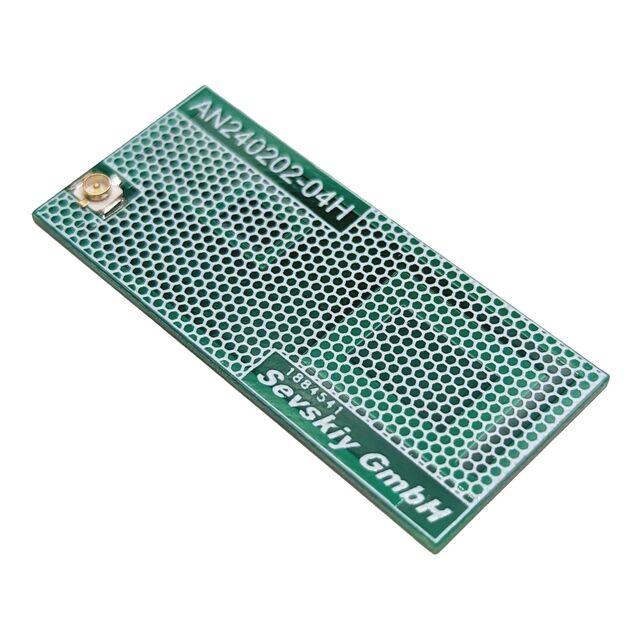

AN240202-04H
ActiveSevskiy GmbH
RF ANT SIGFOX ISM915/2400 U.FL.
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AN240202-04H
ActiveSevskiy GmbH
RF ANT SIGFOX ISM915/2400 U.FL.
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AN240202-04H |
|---|---|
| Antenna Type | PCB Trace |
| Applications | ISM, IoT, LP-WAN, Bluetooth, RFID, WLAN |
| Features | Cable |
| Features | 200 mm |
| Frequency (Center/Band) | 2.4475 GHz, 4.7 GHz, 842.5 MHz |
| Frequency Group [Max] | 1 GHz, 3 GHz |
| Frequency Group [Min] | 300 MHz, 2 GHz |
| Frequency Range [Max] | 2.485 GHz, 925 MHz, 5 GHz |
| Frequency Range [Min] | 760 MHz, 2.41 GHz, 4.4 GHz |
| Gain | 0.7 dBi, 3.1 dBi, 2.5 dBi |
| Height (Max) [Max] [z] | 1 mm |
| Height (Max) [Max] [z] | 0.039 in |
| Mounting Type | Bracket, Adhesive |
| Number of Bands | 3 |
| Power - Max [Max] | 10 W |
| Return Loss | -8 dB, -10 dB, -7 dB |
| RF Family/Standard | Cellular, WiFi |
| Termination | I-PEX MHF1, U.FL (UMCC) |
| VSWR | 2.62, 1.93, 2.32 |
