50224-00701-001
ActiveAces Connectors
1.0 MM PITCH 7 POSITION WIRE TO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
50224-00701-001
ActiveAces Connectors
1.0 MM PITCH 7 POSITION WIRE TO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 50224-00701-001 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Latch Holder |
| Features | Solder Retention |
| Insulation Color | Black |
| Insulation Height | 0.114 " |
| Insulation Height | 2.9 mm |
| Insulation Material | Thermoplastic, Halogen Free |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 7 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.039 in |
| Pitch - Mating | 1 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.16 | |
| 10 | $ 0.14 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.11 | |||
| Digi-Reel® | 1 | $ 0.16 | ||
| 10 | $ 0.14 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.11 | |||
| Tape & Reel (TR) | 1500 | $ 0.10 | ||
| 3000 | $ 0.09 | |||
| 4500 | $ 0.09 | |||
| 7500 | $ 0.09 | |||
| 10500 | $ 0.08 | |||
| 15000 | $ 0.08 | |||
| 37500 | $ 0.08 | |||
| 75000 | $ 0.07 | |||
| 150000 | $ 0.07 | |||
Description
General part information
50224-00701-001

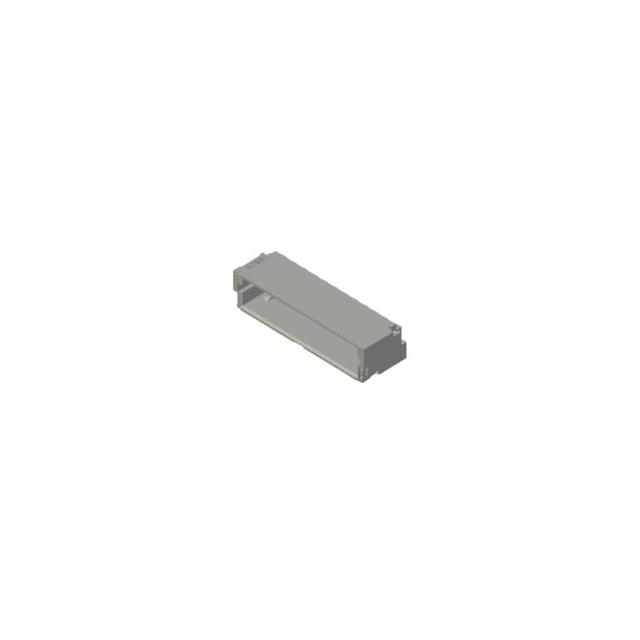

Connector Header Surface Mount, Right Angle 7 position 0.039" (1.00mm)
