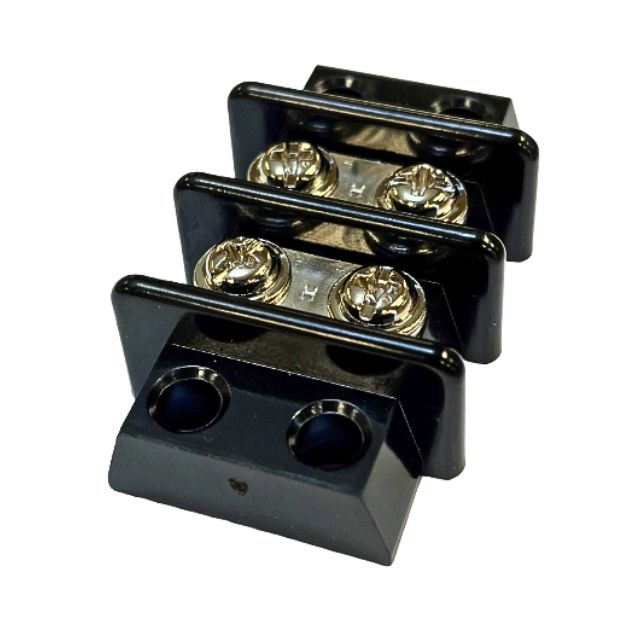

HD-30A-02PH
ActiveBlockMaster Electronics
DOUBLE ROW, 14MM (0.560") 2 POLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HD-30A-02PH
ActiveBlockMaster Electronics
DOUBLE ROW, 14MM (0.560") 2 POLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HD-30A-02PH |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | Closed |
| Color | Black |
| Current Rating (Amps) | 40 A |
| Features | Flange |
| Material - Insulation | Phenol Formaldehyde (Phenolic) |
| Mounting Type | Panel, Chassis |
| Number of Circuits | 2 |
| Number of Rows | 2 |
| Number of Wire Entries | 4 |
| Operating Temperature [Max] | 160 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.551 in |
| Pitch [x] | 14 mm |
| Terminal Block Type | Barrier Block |
| Terminal Screw Finish | Nickel |
| Terminal Screw Material | Steel |
| Top Termination | Screws |
| Voltage Rating | 600 VAC |
| Wire Gauge [Max] | 18 AWG |
| Wire Gauge [Min] | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 2.95 | |
Description
General part information
HD-30A-02PH
2 Circuit 0.551" (14.00mm) Barrier Block Connector Screws
