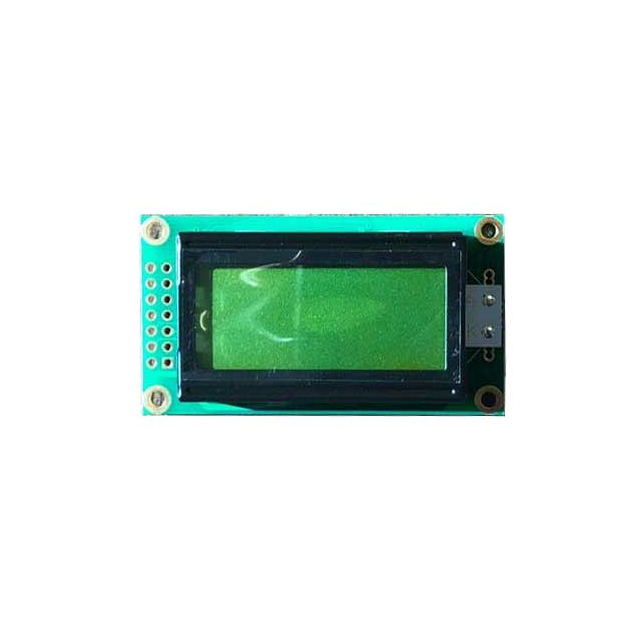

ACM1602B-RN-GBS

Active

AZ Displays

16X2 CHARACTER LCD REFLECTIVE

Search across all available documentation for this part.

Active

AZ Displays

16X2 CHARACTER LCD REFLECTIVE

Technical Specifications

Parameters and characteristics for this part

Specification	ACM1602B-RN-GBS

Backlight	LED
Character Format [x]	5 Dots
Character Format [y]	8 Dots
Character Size [x]	3 mm
Character Size [y]	5.23 mm
Controller Type	KS0066
Display Format [x]	16
Display Format [y]	2
Display Mode	Reflective
Display Type	STN - Super-Twisted Nematic, TN - Twisted Nematic
Dot Size [x]	0.56 mm
Dot Size [y]	0.61 mm
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline L x W x H [x]	84 mm
Outline L x W x H [y]	44 mm
Outline L x W x H [z]	9.5 mm
Viewing Area [x]	64.5 mm
Viewing Area [y]	16.4 mm
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Character Display Module Reflective 5 x 8 Dots STN - Super-Twisted Nematic, TN - Twisted Nematic LED 84.00mm x 44.00mm x 9.50mm
