HMD0149L
ActiveSOSHIN ELECTRIC CO., LTD.
LTCC BAND PASS FILTER, 6095MHZ -
Deep-Dive with AI
Search across all available documentation for this part.
HMD0149L
ActiveSOSHIN ELECTRIC CO., LTD.
LTCC BAND PASS FILTER, 6095MHZ -
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HMD0149L |
|---|---|
| Bandwidth | 1.03 GHz |
| Filter Type | Band Pass |
| Frequency | 6.61 GHz |
| Height (Max) [Max] | 0.071 in |
| Height (Max) [Max] | 1.8 mm |
| Insertion Loss | 2.5 dB |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Package / Case | 8 Leads |
| Ripple | 1.32 dB |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [y] | 3.2 mm |
| Size / Dimension [y] | 0.126 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.26 | |
| 10 | $ 2.66 | |||
| 25 | $ 2.45 | |||
| 50 | $ 2.31 | |||
| 100 | $ 2.17 | |||
| 250 | $ 2.00 | |||
| Digi-Reel® | 1 | $ 3.26 | ||
| 10 | $ 2.66 | |||
| 25 | $ 2.45 | |||
| 50 | $ 2.31 | |||
| 100 | $ 2.17 | |||
| 250 | $ 2.00 | |||
| Tape & Reel (TR) | 500 | $ 1.86 | ||
| 1000 | $ 1.75 | |||
| 1500 | $ 1.69 | |||
| 2500 | $ 1.62 | |||
| 3500 | $ 1.57 | |||
Description
General part information
HMD0149L

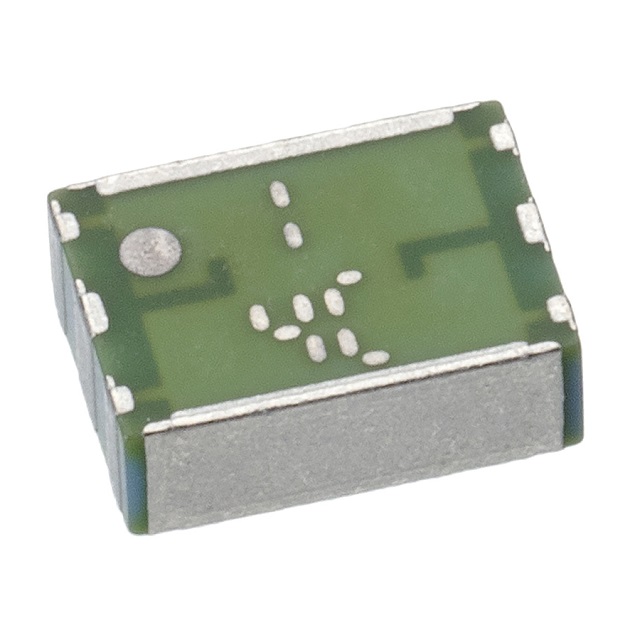

6.61GHz Center Frequency Band Pass RF Filter (Radio Frequency) 1.03GHz Bandwidth 2.5dB 1812 (4532 Metric), 8 PC Pad
