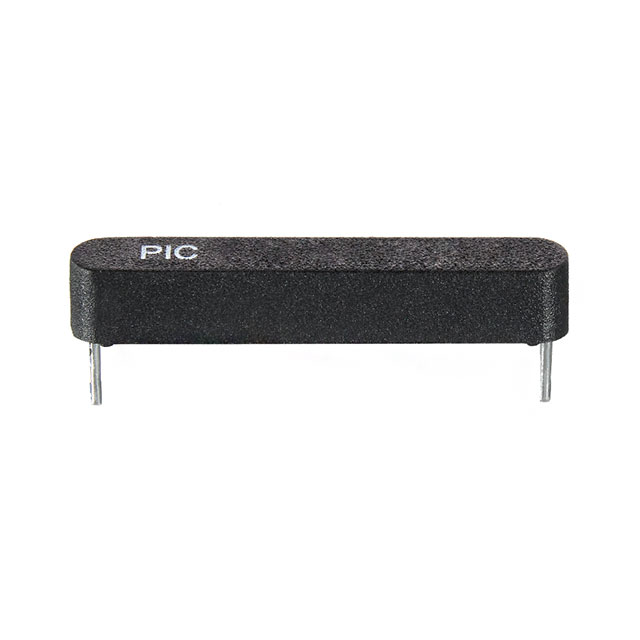

MS-108-3-2
ActivePIC GmbH
SWITCH REED SPST-NO 1A 140V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS-108-3-2
ActivePIC GmbH
SWITCH REED SPST-NO 1A 140V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS-108-3-2 |
|---|---|
| Circuit | SPST-NO |
| Current - Carry | 1.2 A |
| Current - Switching | 1 A |
| Height Above Board | 0.165 " |
| Height Above Board | 4.2 mm |
| Length - Overall [x] | 0.878 in |
| Length - Overall [x] | 22.3 mm |
| Mounting Type | Through Hole |
| Operate Range [Max] | 20 AT |
| Operate Range [Min] | 15 |
| Operate Time | 1 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Power - Rated | 10 W |
| Release Range | 5 AT |
| Release Time | 0.4 ms |
| Size - Body [x] | 22.3 mm |
| Size - Body [x] | 0.878 in |
| Size - Body [y] | 0.13 " |
| Size - Body [y] | 3.3 mm |
| Size - Body [z] | 4.2 mm |
| Size - Body [z] | 0.165 " |
| Termination Style | PC Pin |
| Type | Molded Body Reed |
| Voltage - Switching AC [custom] | 140 V |
| Voltage - Switching DC | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.43 | |
| 10 | $ 1.25 | |||
| 25 | $ 1.18 | |||
| 100 | $ 1.09 | |||
| 250 | $ 1.03 | |||
| 500 | $ 0.98 | |||
| 1000 | $ 0.94 | |||
| 2500 | $ 0.89 | |||
| 5000 | $ 0.85 | |||
Description
General part information
MS-108-3-2
Molded Body Reed Switch SPST-NO 15 ~ 20AT Operate Range 10W 1A (AC/DC) 140 V Through Hole
