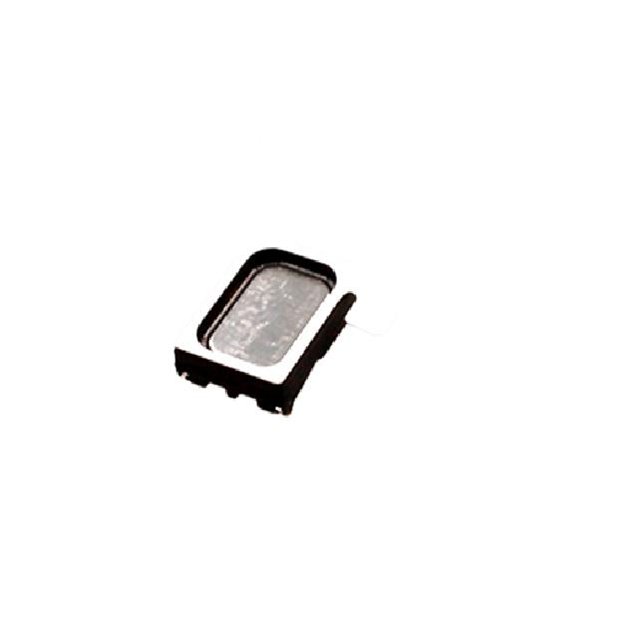

CR1511L035UN8GDA
ActiveSeltech
SPEAKER 8OHM 700MW TOP PORT 71DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CR1511L035UN8GDA |
|---|---|
| Efficiency - dBA | 71 dBA |
| Efficiency - Type | Sensitivity |
| Frequency - Self Resonant | 850 Hz |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 850 Hz |
| Height - Seated (Max) [Max] [z] | 3.5 mm |
| Height - Seated (Max) [Max] [z] | 0.138 in |
| Impedance | 8 Ohms |
| Material - Cone | Foam |
| Port Location | Top |
| Power - Max [Max] | 1 W |
| Power - Rated | 700 mW |
| Shape | Rectangular |
| Size / Dimension [x] | 15 mm |
| Size / Dimension [x] | 0.591 in |
| Size / Dimension [y] | 11 mm |
| Size / Dimension [y] | 0.433 in |
| Termination | Spring Type |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CR1511L035UN8GDA
8 Ohms General Purpose Speaker 700 mW 850 Hz ~ 10 kHz Top Rectangular
