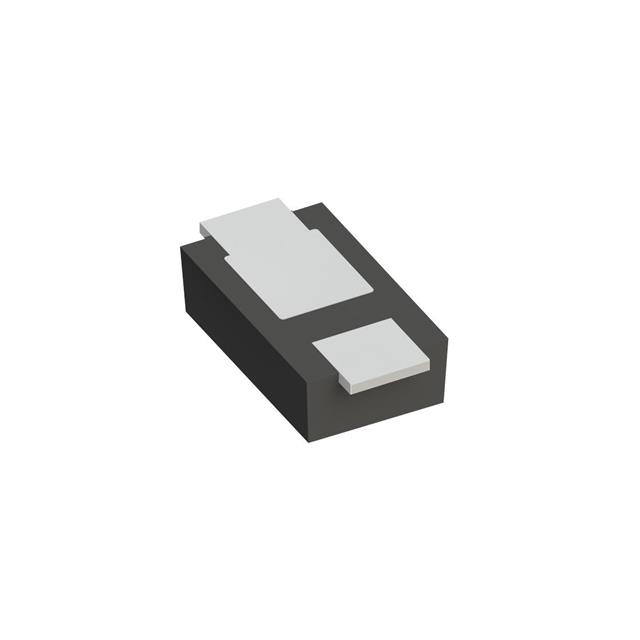

FM340-MST-H
ActiveFormosa Microsemi Co., Ltd.
DIODE SCHOTTKY 40V 3A SOD123ST
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FM340-MST-H
ActiveFormosa Microsemi Co., Ltd.
DIODE SCHOTTKY 40V 3A SOD123ST
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FM340-MST-H |
|---|---|
| Capacitance @ Vr, F | 150 pF |
| Current - Average Rectified (Io) | 3 A |
| Current - Reverse Leakage @ Vr | 500 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 125 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | SOD-123F |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | SOD-123ST |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 10 | $ 0.21 | |
| 50 | $ 0.17 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.07 | |||
| 3000 | $ 0.07 | |||
Description
General part information
FM340-MST-H
Diode 40 V 3A Surface Mount SOD-123ST
